Description

Designed by Hunters, for Hunters.

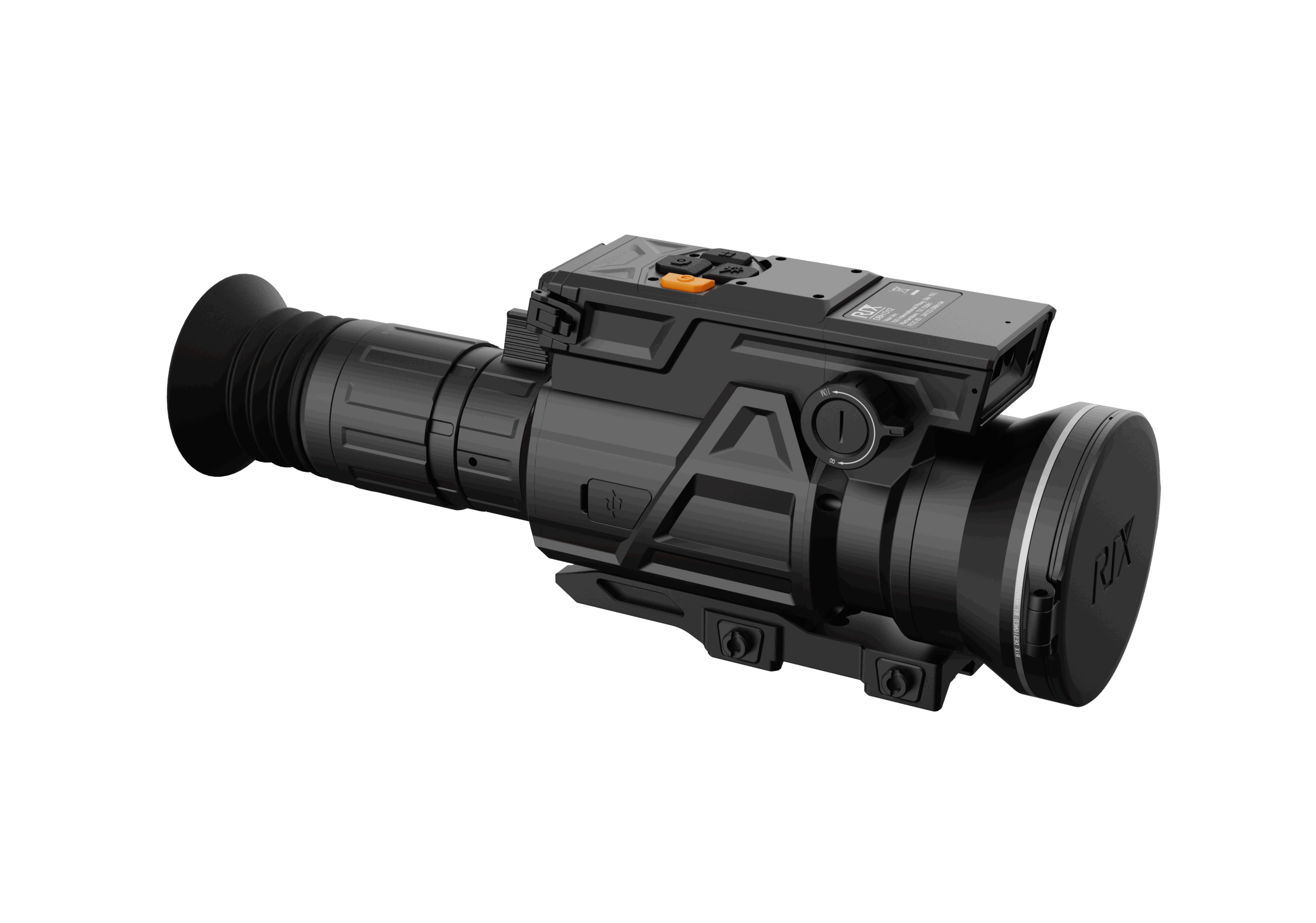

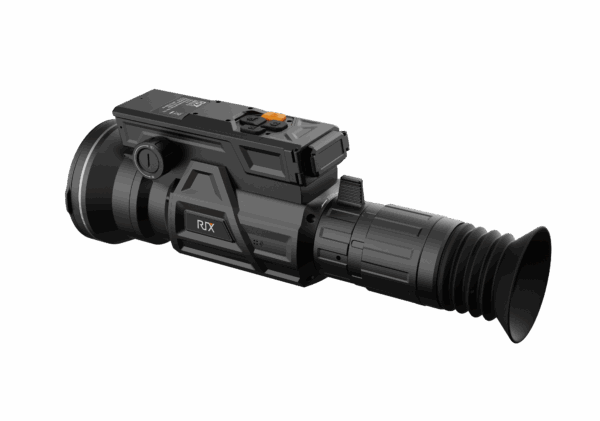

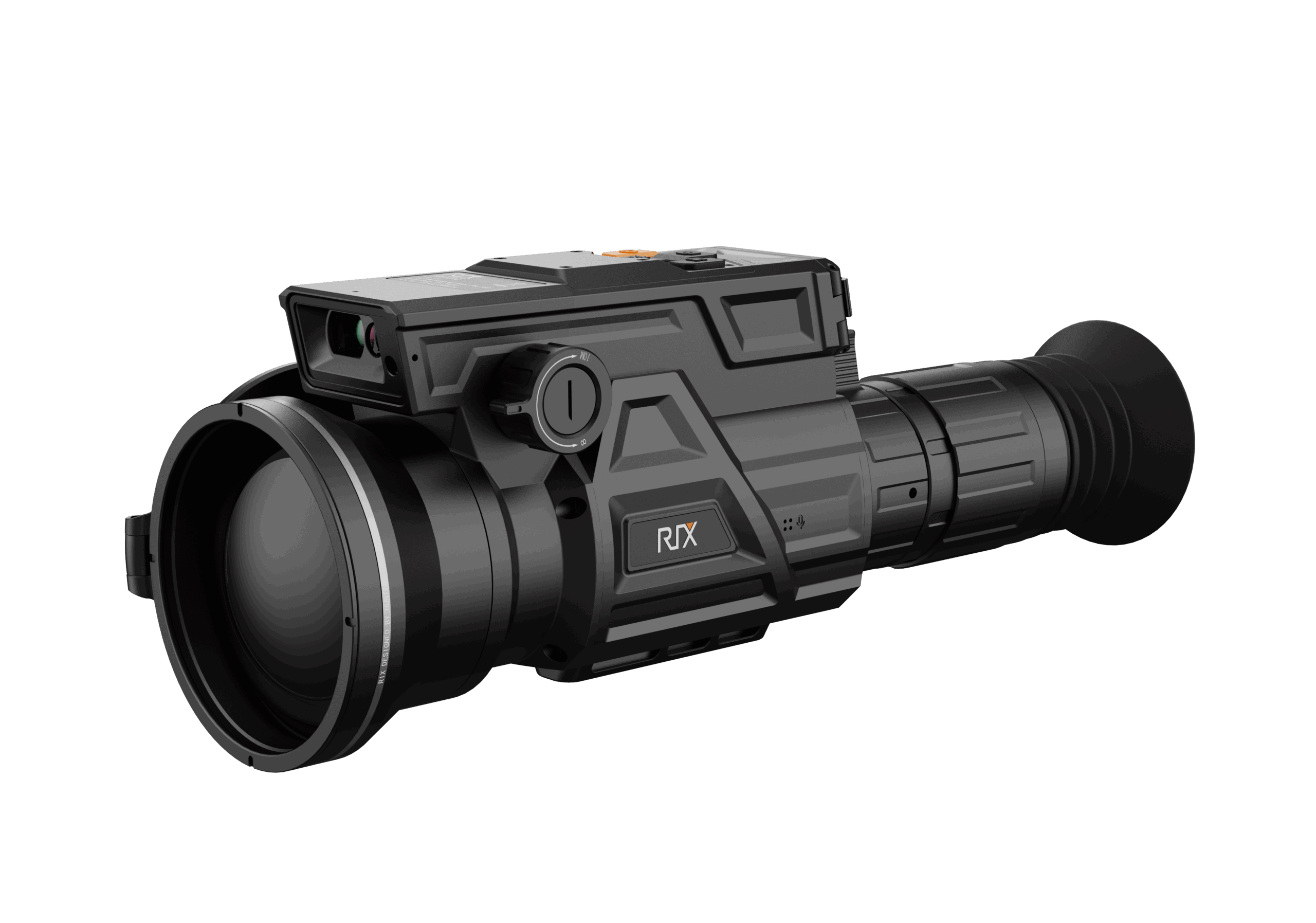

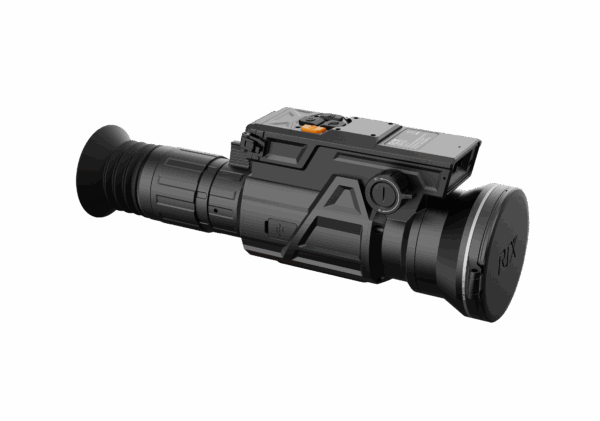

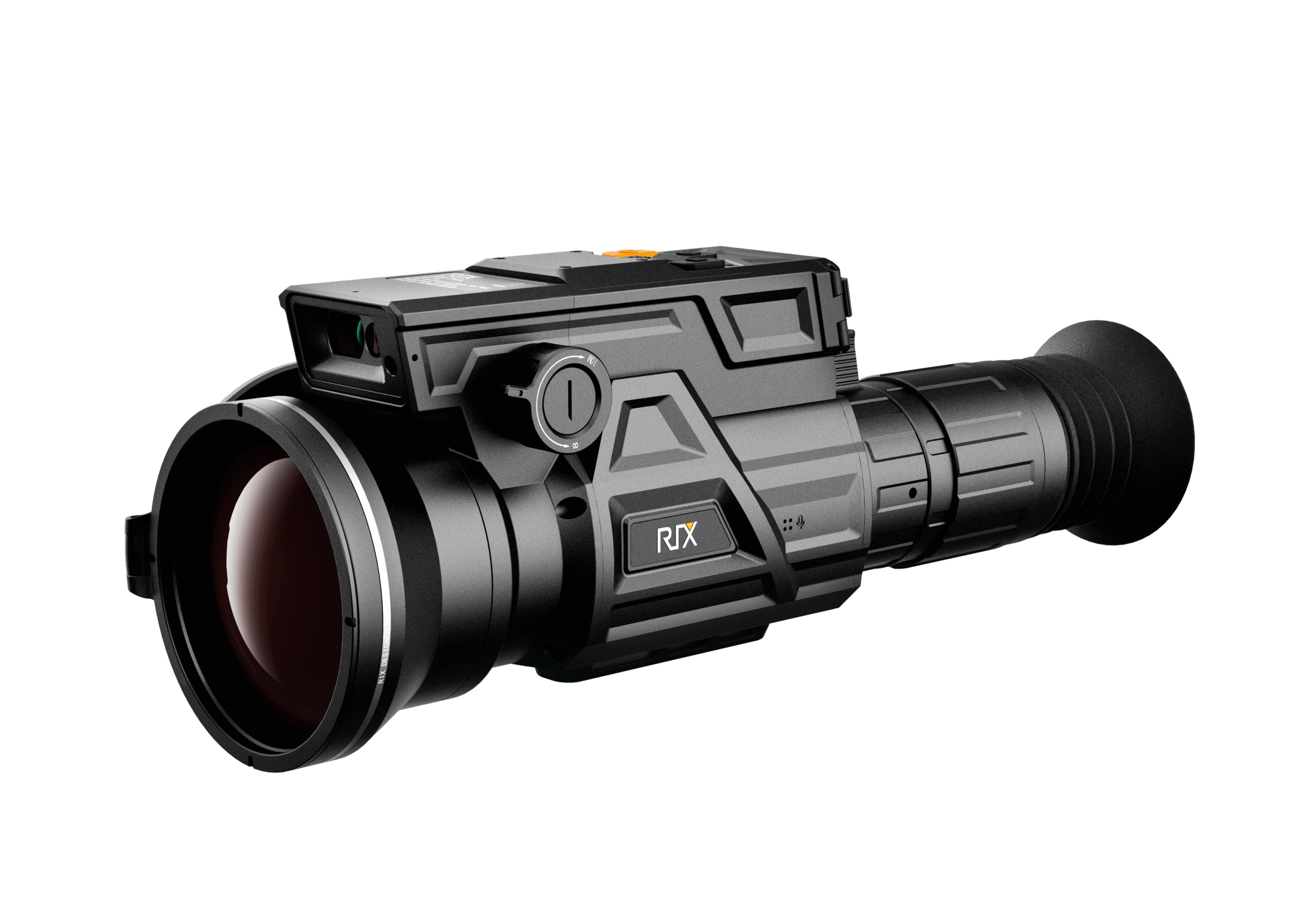

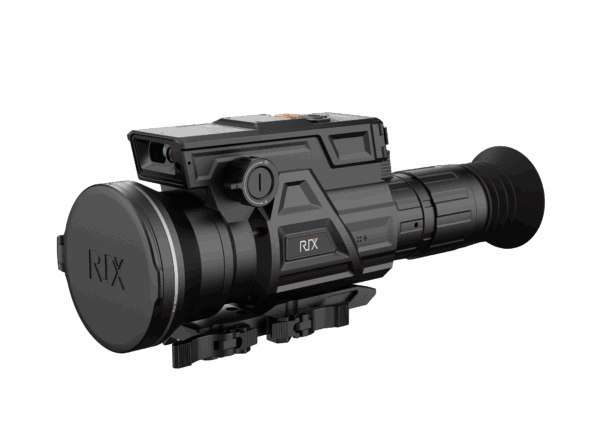

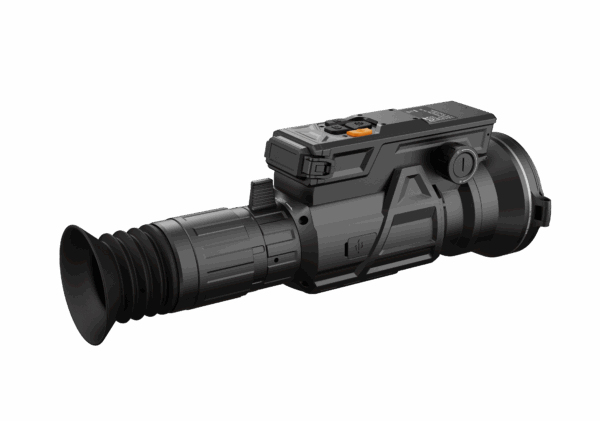

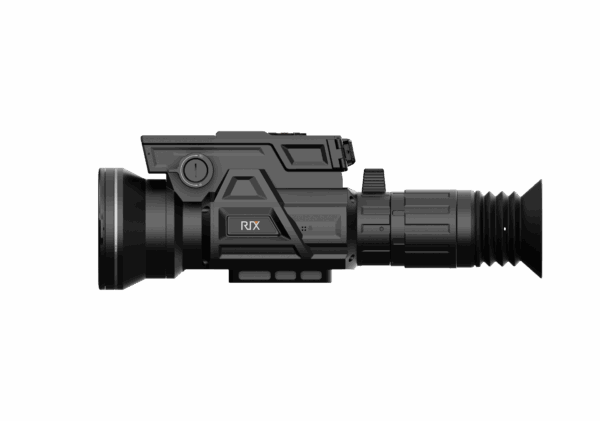

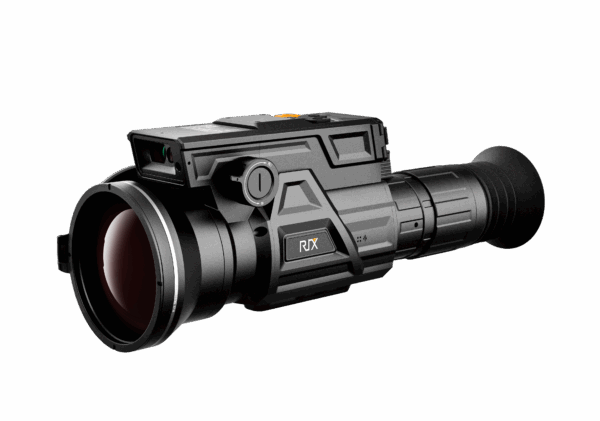

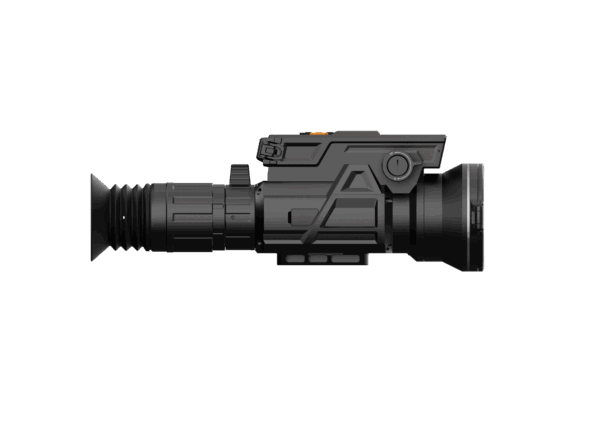

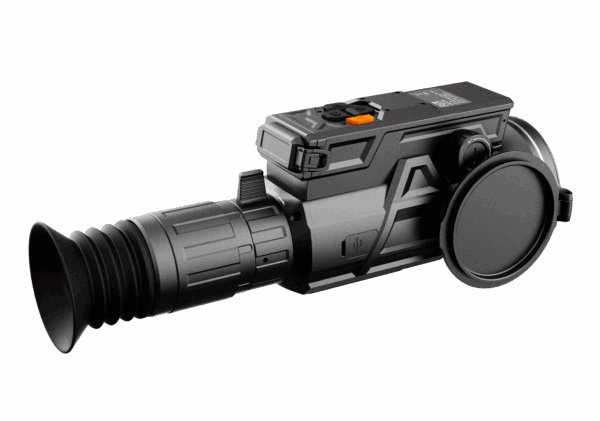

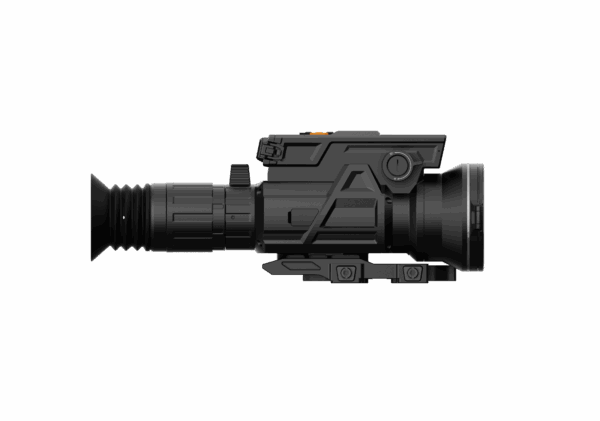

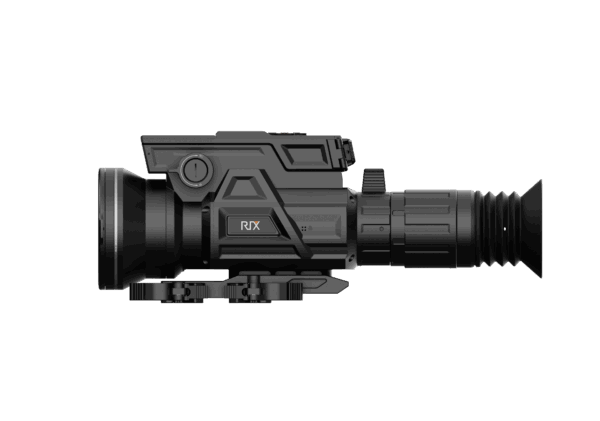

Introducing the DBH D12, the ultimate tool for hunting, observing, tracking and seeing at night. Equipped with cutting-edge thermal imaging technology and high-sensitivity infrared detectors, the DBH D12 ensures exceptional performance, even in challenging weather conditions like rain, snow, fog, and haze.
Built to excel in observation and geospatial positioning, the DBH D12 boasts a versatile feature set, including photography, video recording, laser rangefinding (LRF), a laser pointer, digital zoom, picture-in-picture (PIP), and recoil-activated video capture. Whether you’re scouting, tracking, or documenting, the DBH

D12 is designed to meet your every need in the field.

DBH D12 Specifications:

• Sensor: 1280 x 1024 pixel resolution, 12 µm pixel pitch, VOx Uncooled type.
• Performance: NETD <15 mK and a 50 Hz frame rate.
• Optics: 75 mm F1.0 objective lens.
• Magnification and Range: 3x to 20x stepped digital zoom with a detection range of 4260 yd.
• Display: OLED with 2560 x 2560 resolution, offering a 400-nit retina display with 3528 ppi and 256-level grayscale.
• Physical: Weight is 3.47 lb, and dimensions are 10.3 x 3 x 4.2 inch. It has an IP67 degree of protection.
• Power: Runs on two 18650 batteries (3800 mAh capacity), providing up to 7 hours of continuous operating time.

DBH D6 Specifications (Comparison):

• Sensor: 640 x 512 pixel resolution, 12 µm pixel pitch, VOx Uncooled type.
• Performance: NETD <20 mK and a 60 Hz frame rate.
• Optics: 60 mm F1.0 objective lens.
• Magnification and Range: 3x to 18x stepped digital zoom with a detection range of 3280 yd.

Shared Features (DBH Series):

• Laser Rangefinder (LRF): Built-in 905 nm LRF with a maximum range of 1312 yd.
• Laser Pointer: Integrated green laser for marking downed game out to 500 yd.
• Ballistic Calculation: Supports ballistic calculation in the device and the RIX+ app. It maintains five integrated ballistic profiles.
• Connectivity: Wi-Fi wireless protocol on 2.4 GHz.
• Video Recorder: Video/photo resolution of 1280×1280 pixels, saved as .mp4/.bmp to 64 GB of built-in memory.
• Design: Dual-side focusing structure, DLC coating on the D12 objective lens for scratch resistance, and quick, no-look battery replacement with 18650 batteries.
