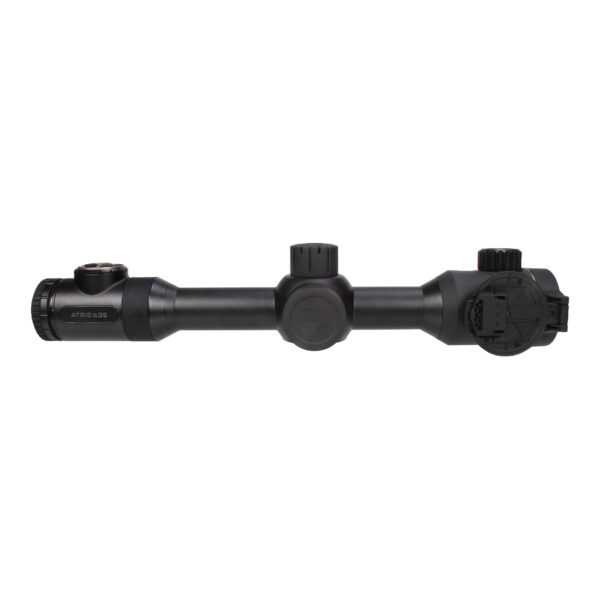

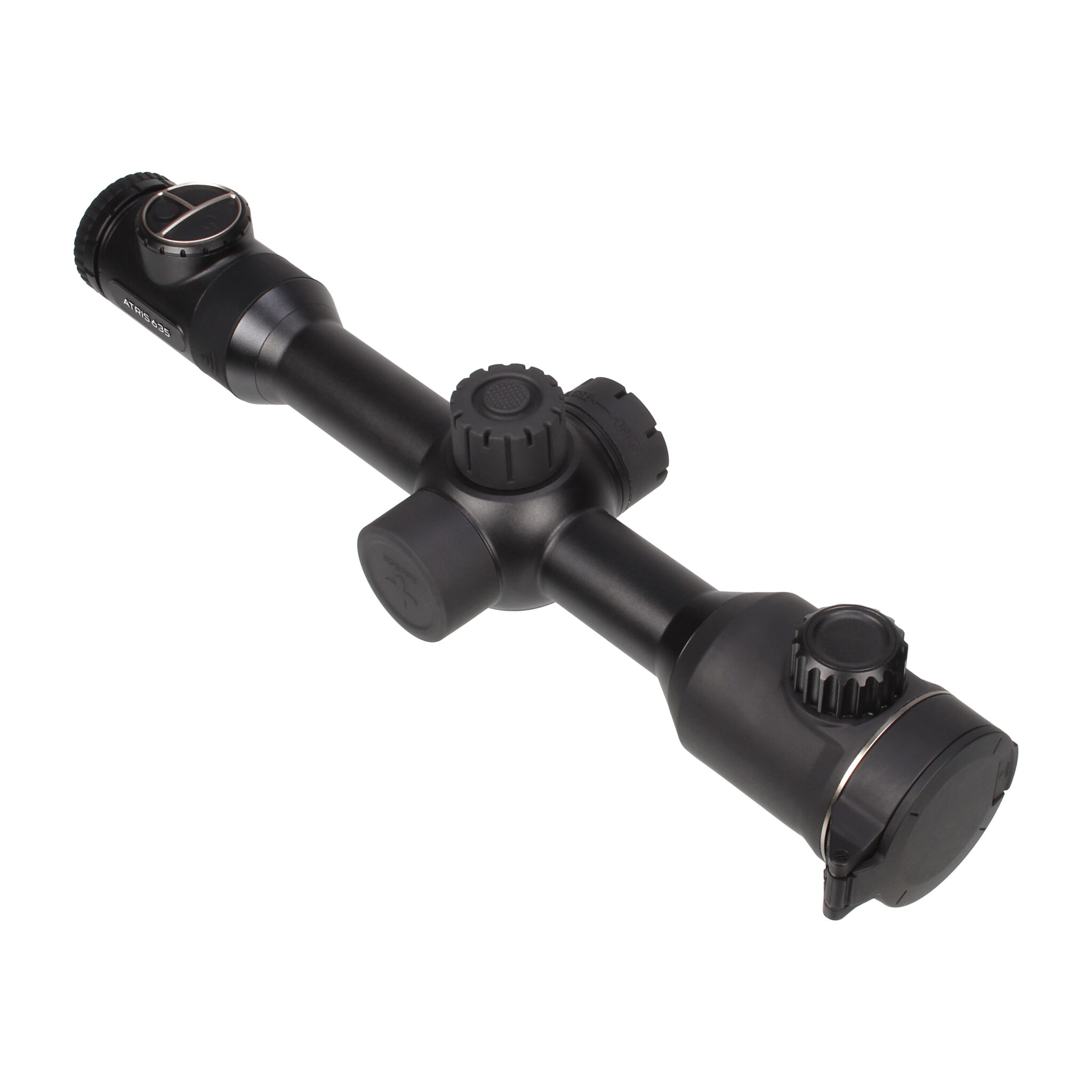

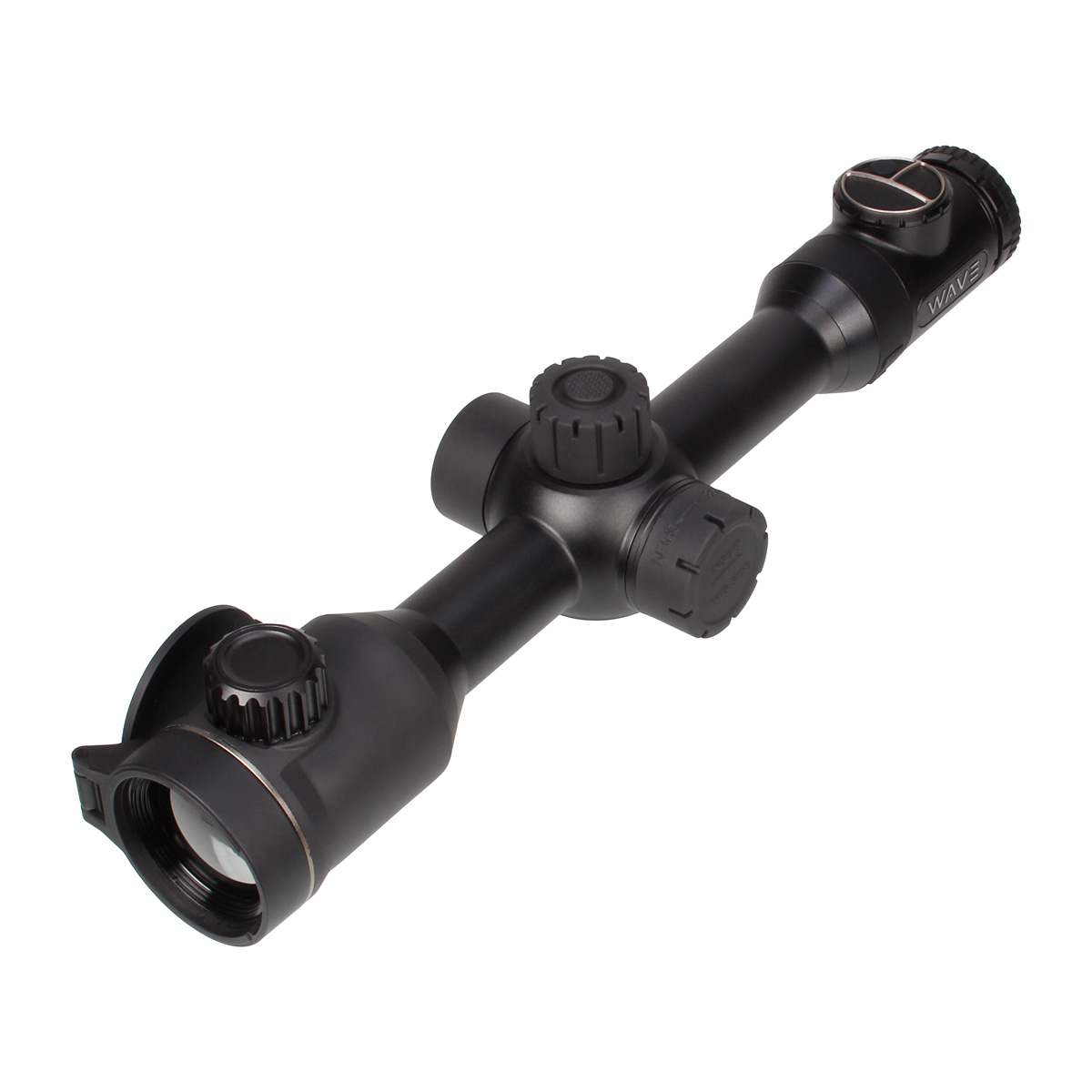

WAVE ATRIS 635 V² Thermal Rifle Scope

Description

WAVE ATRIS 635 V2 thermal scope: my pick for a wide view

I’m Todd Huey from Lone Star Boars. The WAVE ATRIS 635 V2 thermal scope is my 2026 value pick in a traditional tube design.

I would choose the 635 for its wide field of view. However, if you want more magnification, compare it with the ATRIS 650 V2.

I also like the simple controls and display color options. On longer hunts, I prefer the blue filter because I find it easier on my eyes.

Watch my WAVE ATRIS video

Features and benefits

Arclight lens, MicroTherm sensor and TrueView processing

The Arclight germanium lens directs infrared energy to the 640×512 MicroTherm 15 sensor. Its sensitivity rating is below 15mK. This describes the sensor’s ability to detect small temperature differences.

TrueView then processes that information to create the thermal image. It balances image detail and contrast.

ViewMax display and GloveGrip focus

The ViewMax display has a resolution of 2560×2560 pixels. You can also adjust the display hue and choose from six thermal color palettes.

The GloveGrip focus knob sits on top of the front lens assembly. As a result, you can reach it with either hand.

Photo, video and audio recording

The scope records photos, video and audio. You can review or delete files on the device. In addition, WiFi connects the scope to the WAVE IR app.

Recoil-activated recording is also available, with an adjustable sensitivity threshold.

Relentless Runtime battery options

The scope runs on one protected 26650 rechargeable battery. Alternatively, you can use a protected 18650 battery with the included sleeve.

WAVE lists an expected battery life of 10 hours.

Five-year transferable warranty

WAVE provides a five-year transferable warranty. The remaining coverage follows the scope if ownership changes, subject to WAVE’s warranty terms.

WAVE ATRIS 635 V2 specifications

Sensor, lens and magnification

• Thermal sensor: 640×512
• Pixel size: 12 µm
• Frame rate: 50 Hz
• Thermal sensitivity: NETD <15mK
• Lens focal length: 35mm
• Objective lens diameter: 40mm
• Base magnification: 2.8×
• Magnification range: 2.8–11.2×, with Rapid and Smooth digital zoom options
• Field of view: 670 feet at 1,000 yards at base magnification
• Detection range: Up to 2,900 yards

Display, recording and controls

• Display: ViewMax 2560×2560 with Widefield Technology
• Display hues: Adjustable
• Thermal palettes: White, Black, Red, Green, Golden and Violet
• Picture-in-picture: Yes
• Recording: Photos and video, with audio on or off
• Recoil-activated recording: Yes, with adjustable sensitivity
• Hot tracking and outline mode: Yes
• Media management: View and delete files on the device
• WiFi: Yes
• Startup time: 5 seconds
• Automatic shutdown: Off, 30, 60 or 90 minutes

Reticles and profiles

• Reticle designs: Nine, plus a no-reticle option
• Reticle colors: Black or white, with polarity reversal
• Illuminated center dot: Available on four reticle designs
• Center dot colors: Red, blue and green
• Reticle focal plane options: Front or second focal plane
• Profiles: Save up to five different zeros
• Profile labels: Caliber and zero distance

Battery, dimensions and durability

• Main battery: One protected 26650 rechargeable battery
• Alternative battery: Protected 18650 with the included sleeve
• Expected battery life: 10 hours
• Recoil rating: 10,000 J
• Nitrogen purged: Yes
• Length: 14 inches
• Tube diameter: 30mm
• Ring attachment torque: 25 inch-pounds
• Weight: 33.1 ounces without the battery
• Waterproof rating: IP67
• Warranty: Five years, transferable
