Description

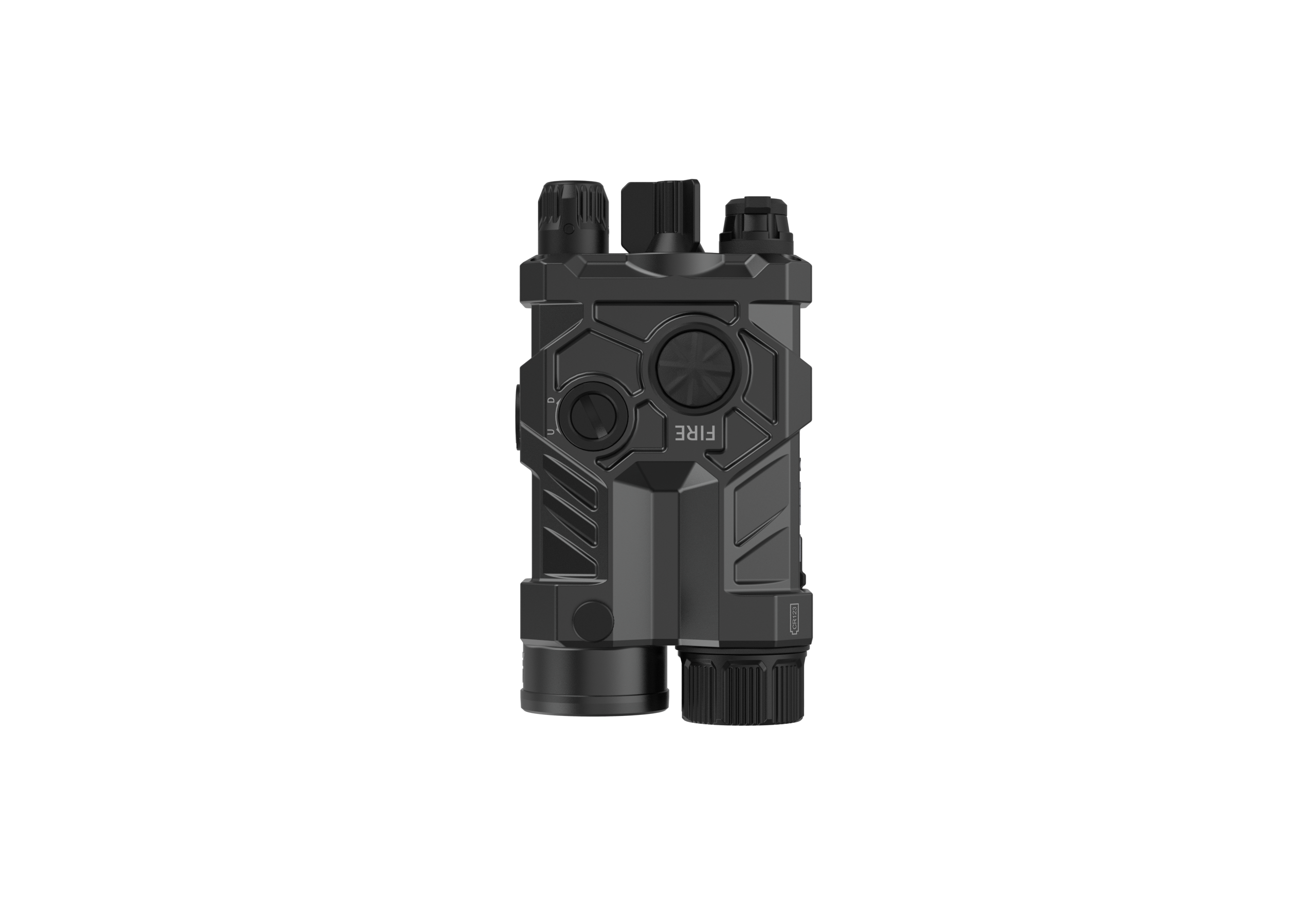

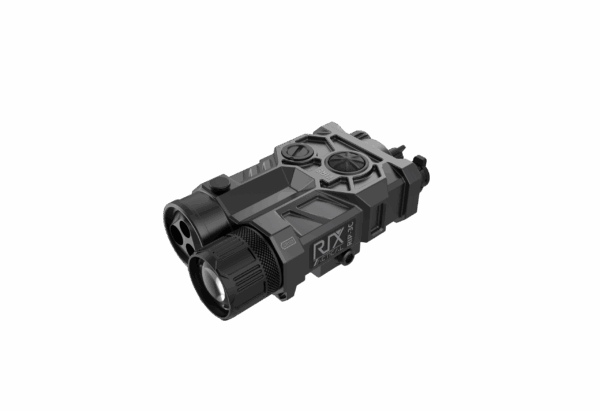

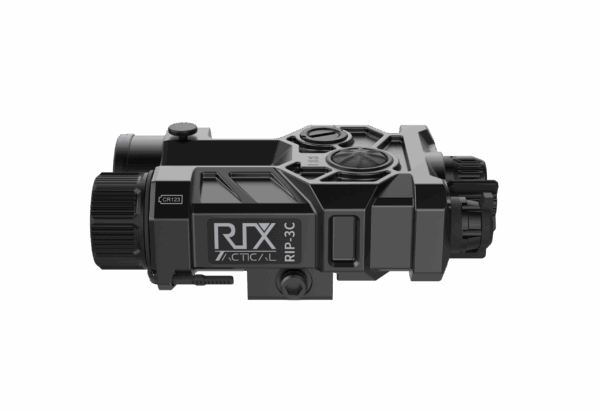

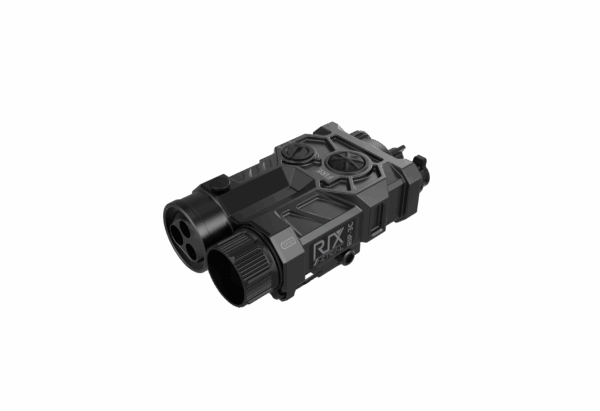

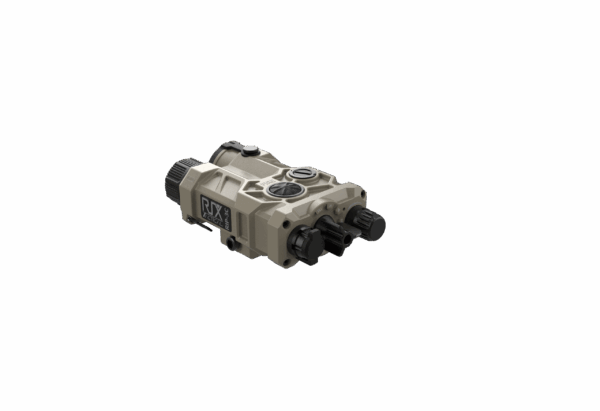

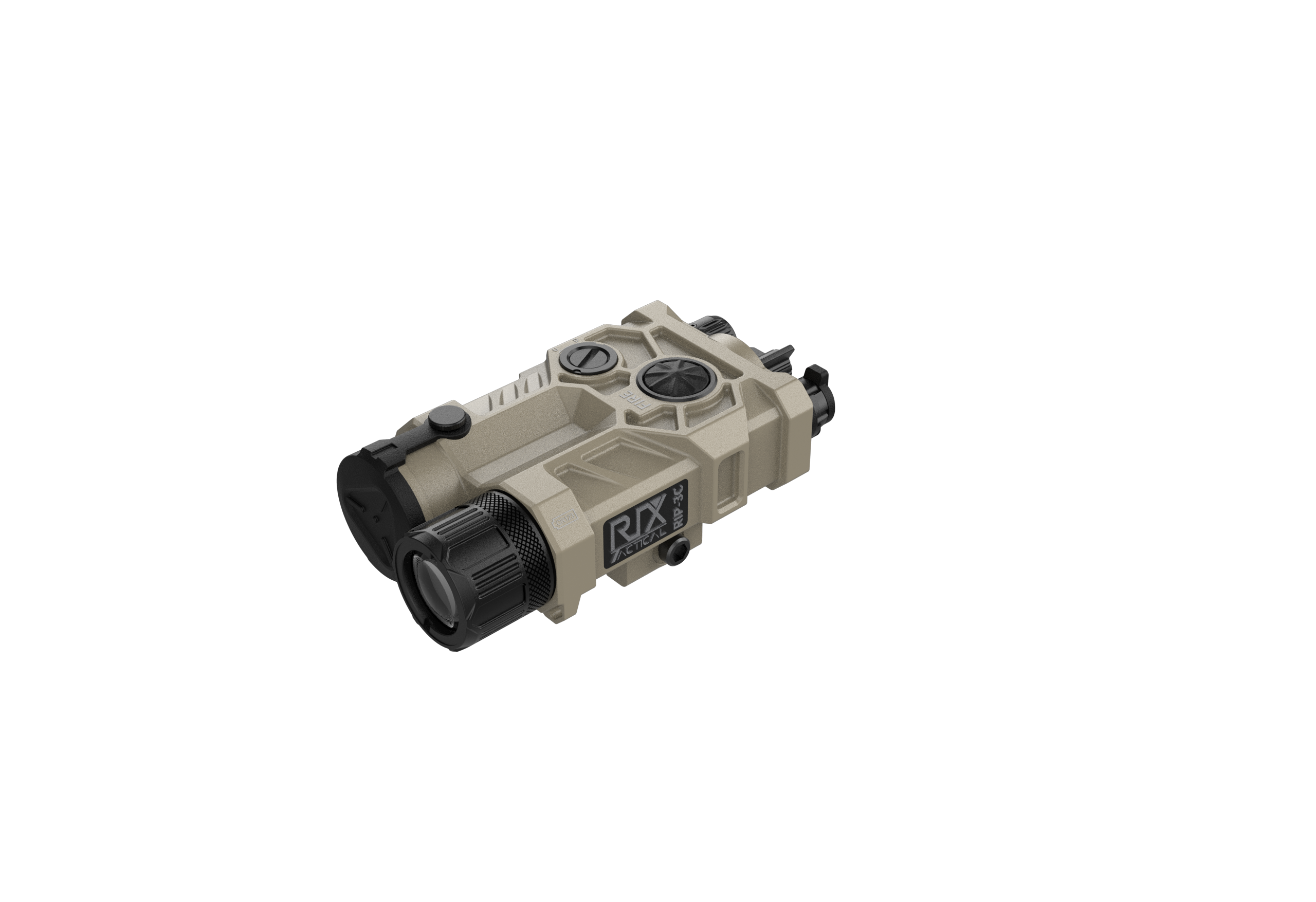

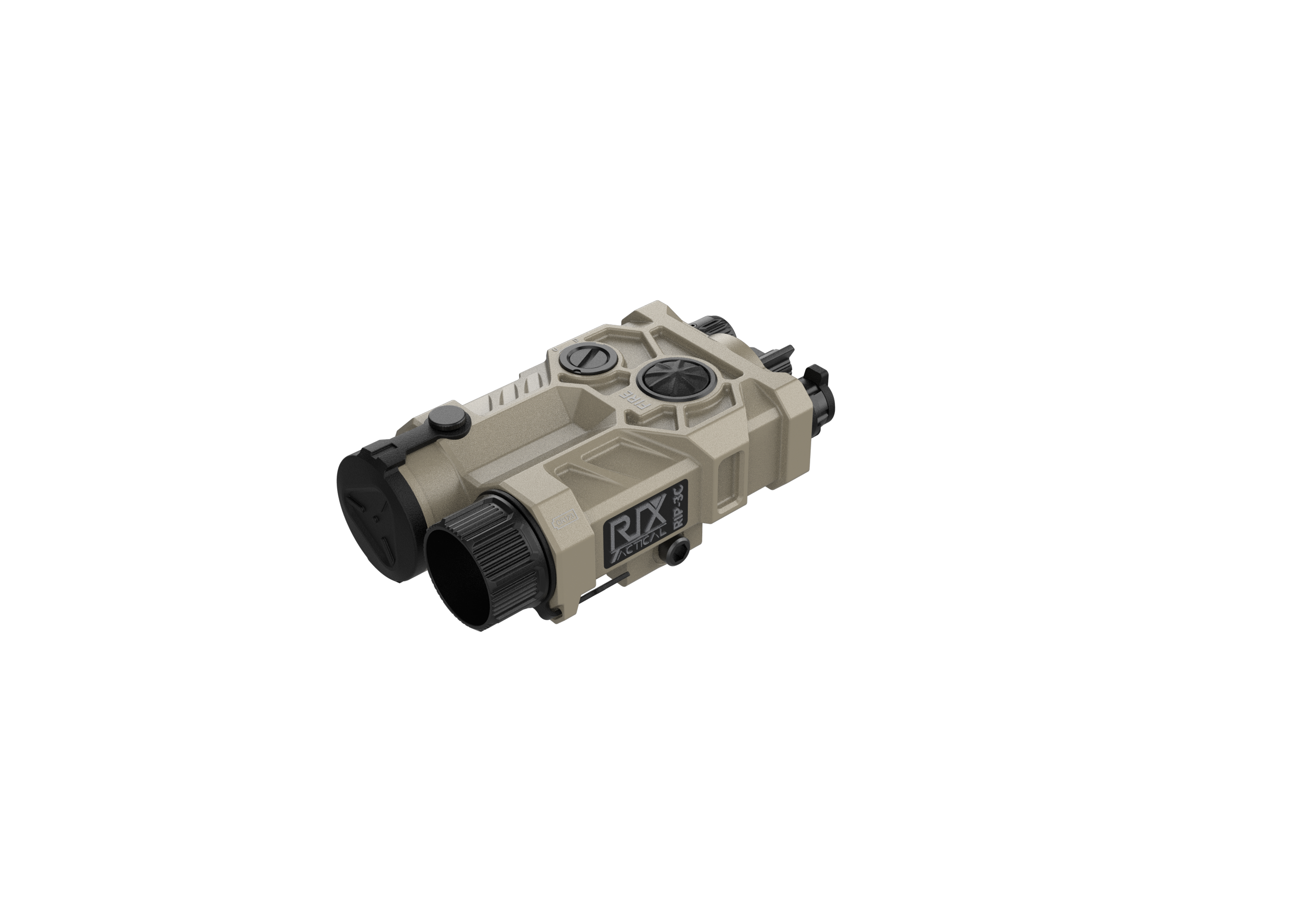

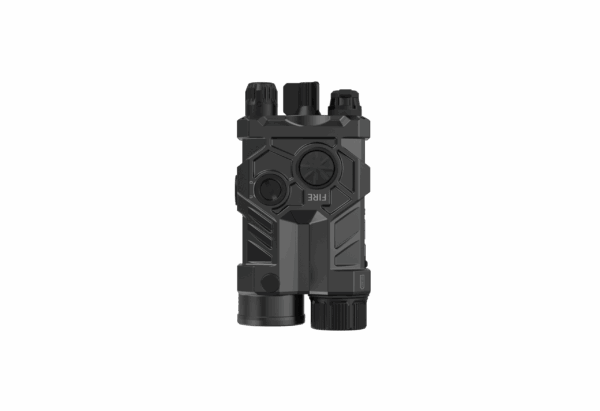

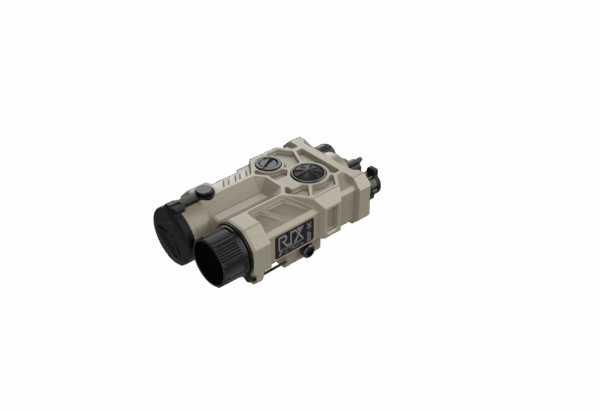

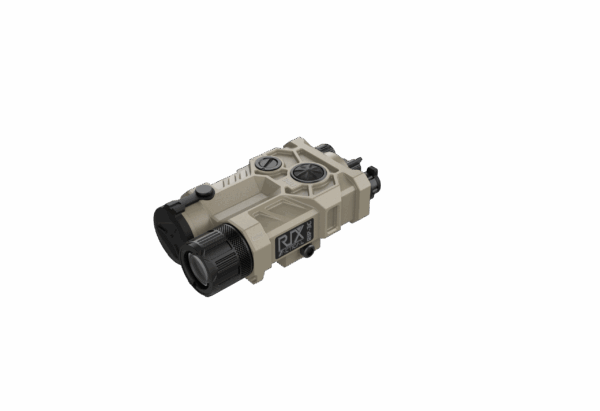

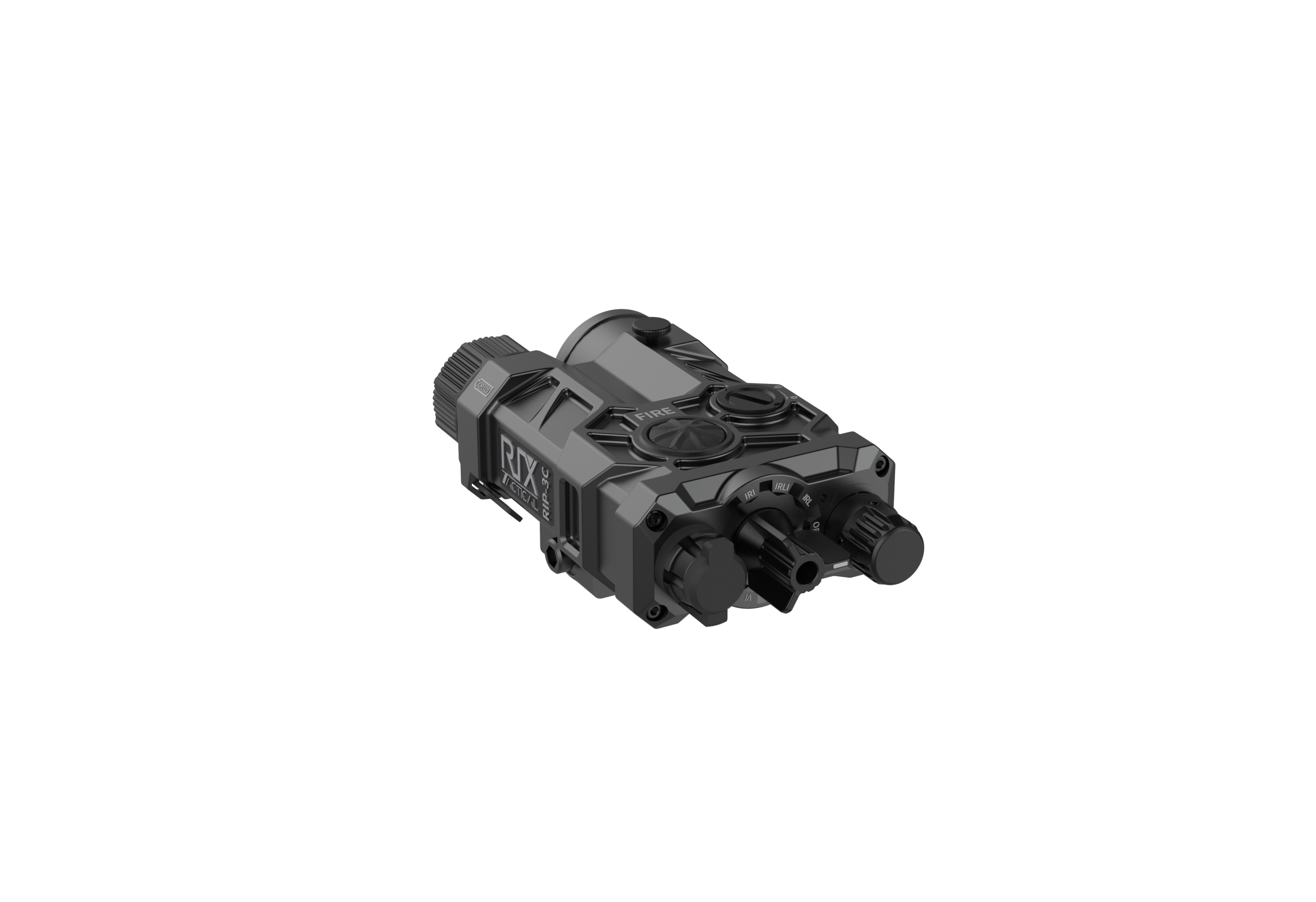

The RIP-3C is an all-in-one tactical laser sight featuring a lightweight aluminum housing, weighing less than 0.5 lbs. Its compact dimensions are 4.17 x 2.44 x 1.65 inches.

Key Features and Capabilities:

• Lasers and Illuminator: It includes a green visible laser, an IR laser, and an IR illuminator.
  • The green visible laser is significantly more visible than red lasers.
  • The green visible laser and IR laser have a range of up to 550 yards.
  • The built-in IR illuminator offers illumination out to 170 yards.
  • The IR illuminator is a VCSEL type with an adjustable spot size.
  • Both the visible green laser and IR laser pointers are coaxially aligned for simultaneous zeroing.
• Durability and Protection:
  • The RIP-3C is built to endure impacts of up to 1000g, with a robust aluminum alloy housing.
  • It has an IP67 waterproof rating, offering exceptional protection against water intrusion.
• Sighting and Adjustment:
  • It seamlessly attaches to standard M1913 Picatinny rails using a mil-standard mounting system.
  • Precise windage and elevation adjustments are made easy with a 0.25 mil click value.
  • The W&E Travel Range is ±20 mil.

Technical Specifications (Output/Performance):

• Green Laser: 520±15nm, <5mW, Class 3a
• IR Laser: 820±15nm, <3mW, Class 3a
• IR Illuminator: 850±15nm, <3 mW, Class 3a
• IR Illuminator Divergence (FWHM): 45-140 mrad
• Power: Uses a CR123 A*1 battery type

Working Modes (Selected via Gear Switch):

• OFF
• VL (Visible Laser)
• VI (Visible Illuminator)
• VLI (Visible Laser + Visible Illuminator)
• IRL (IR Laser)
• IRLI (IR Illuminator)
• IRLI (IR Laser + IR Illuminator)
