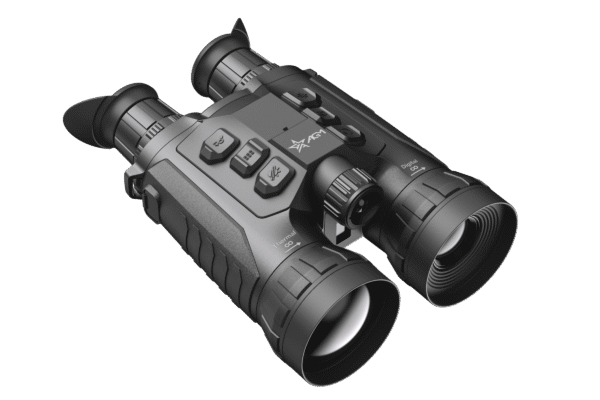

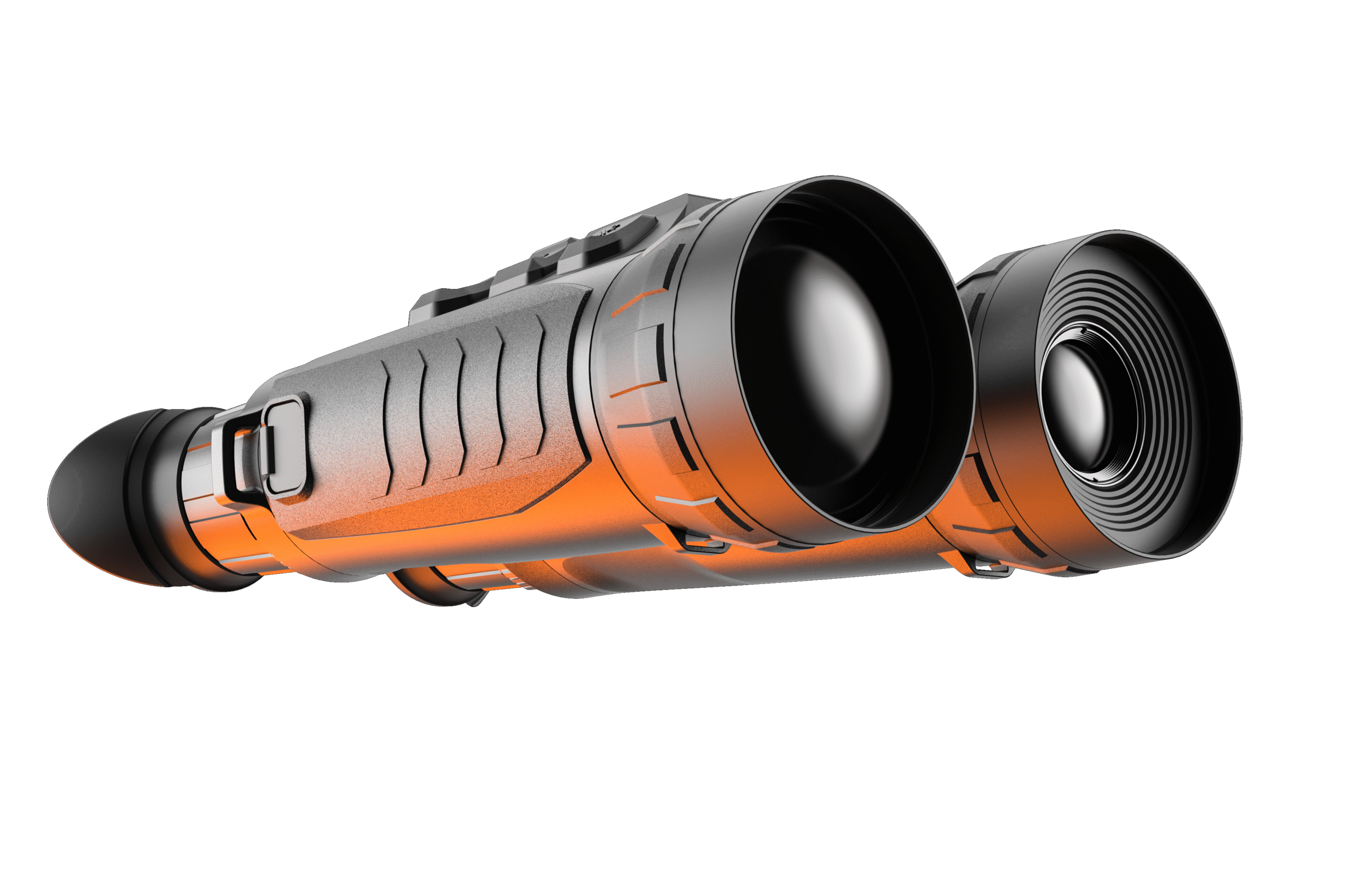

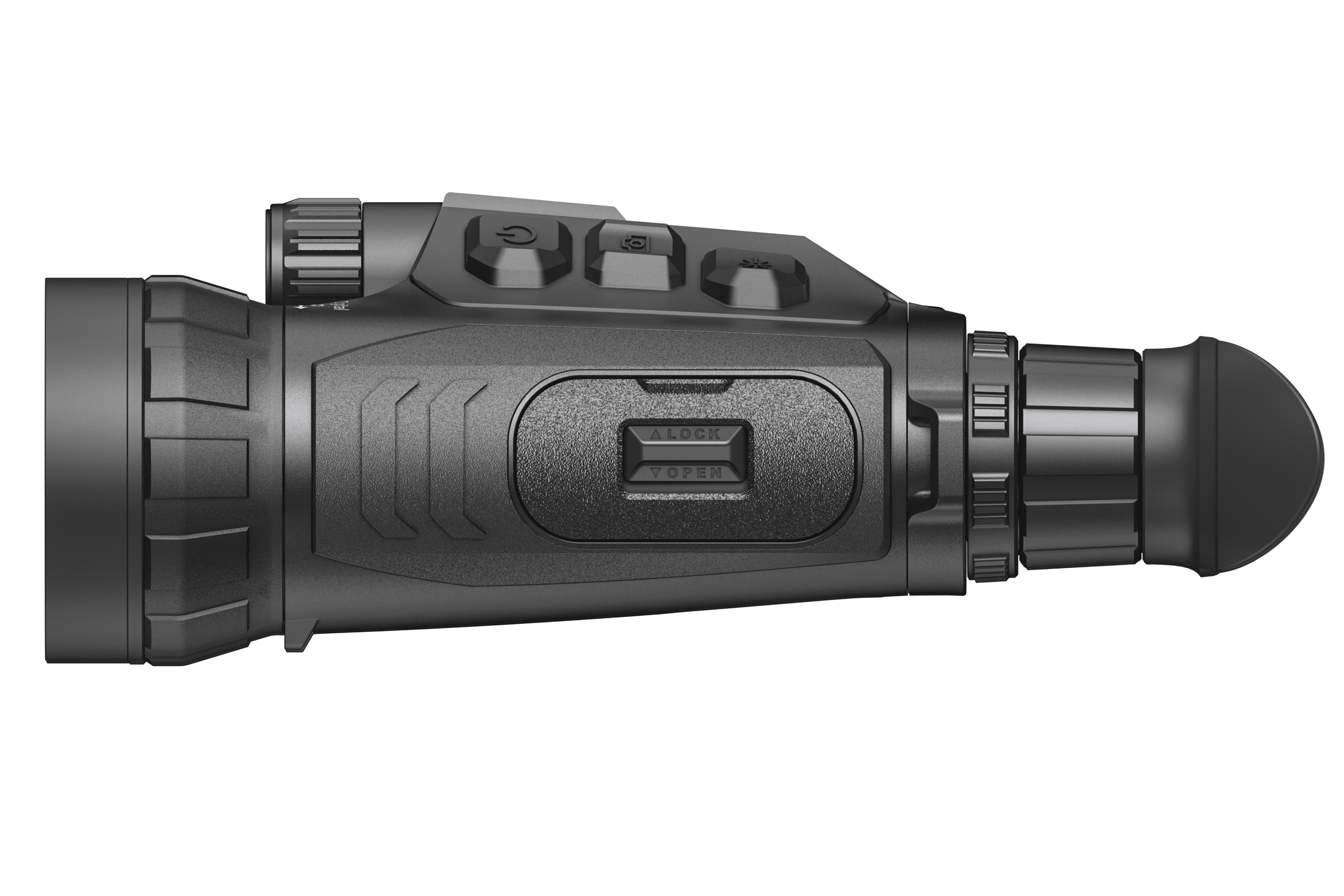

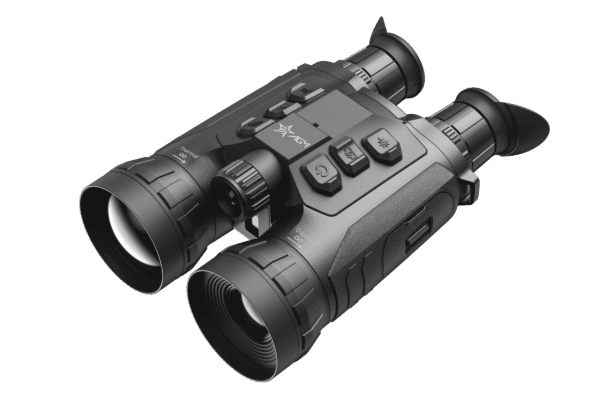

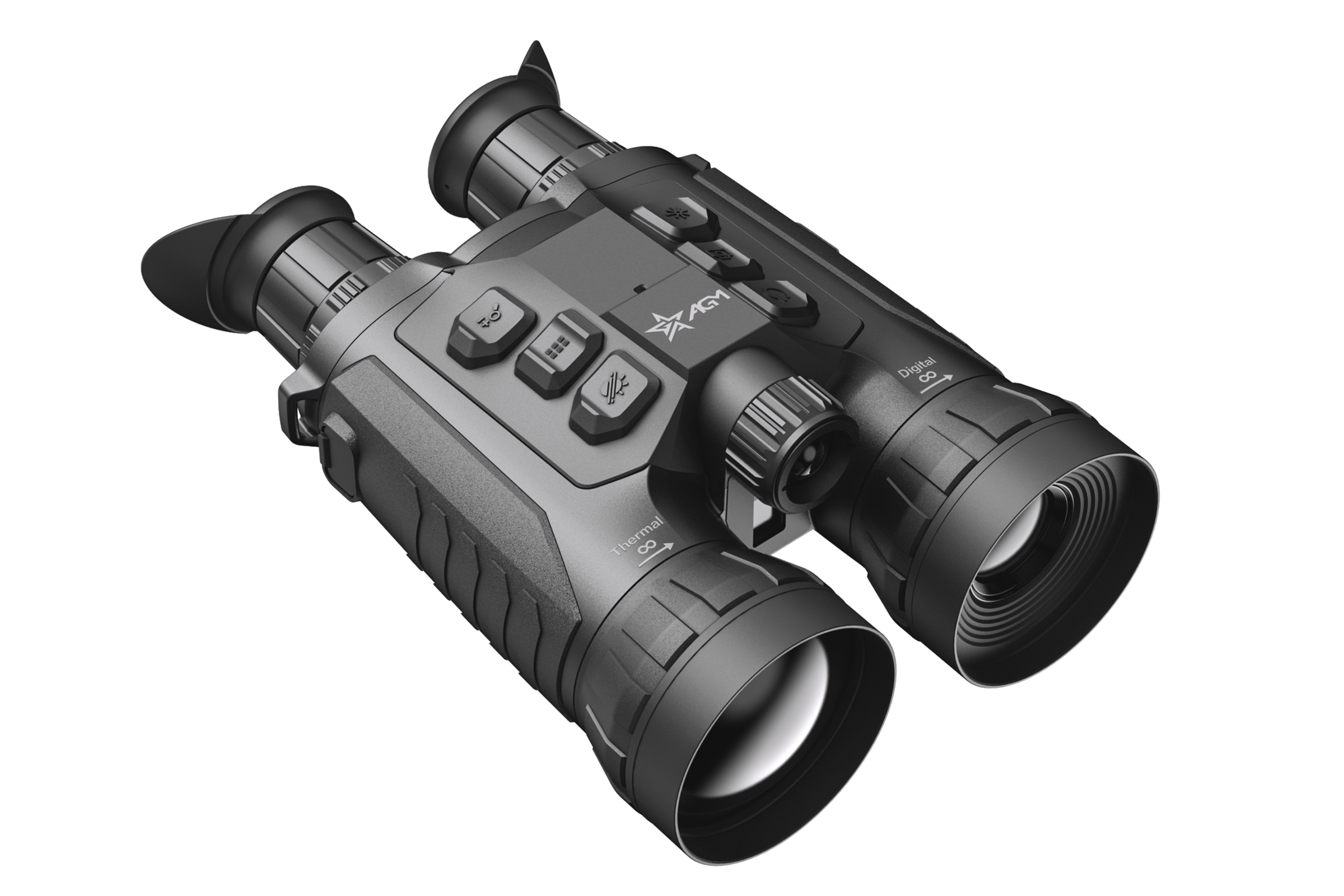

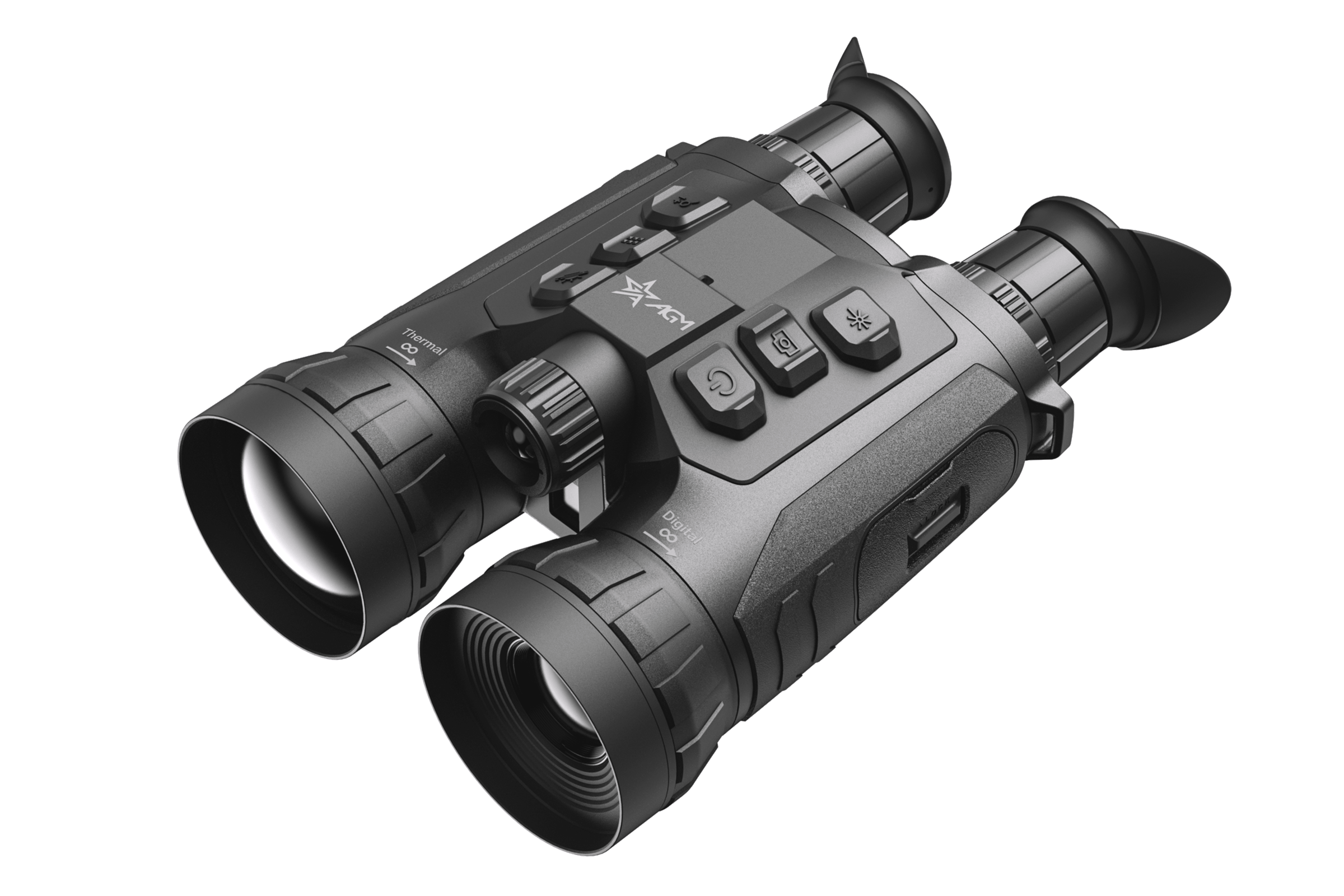

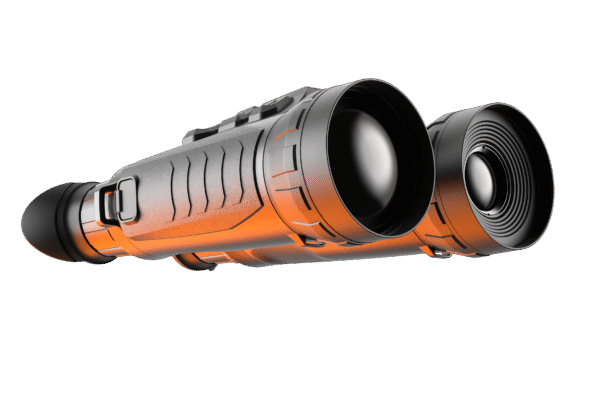

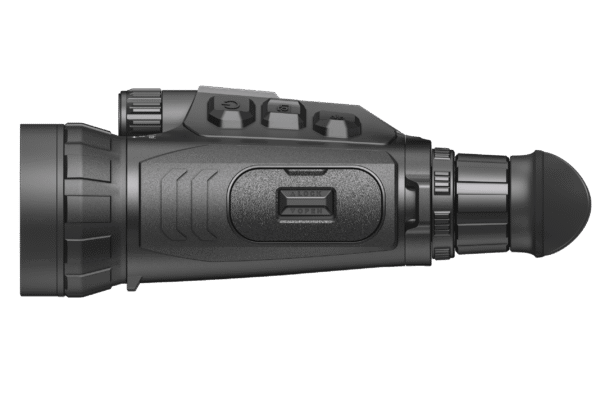

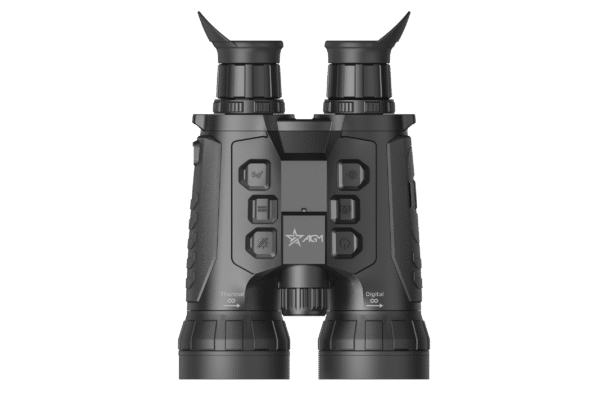

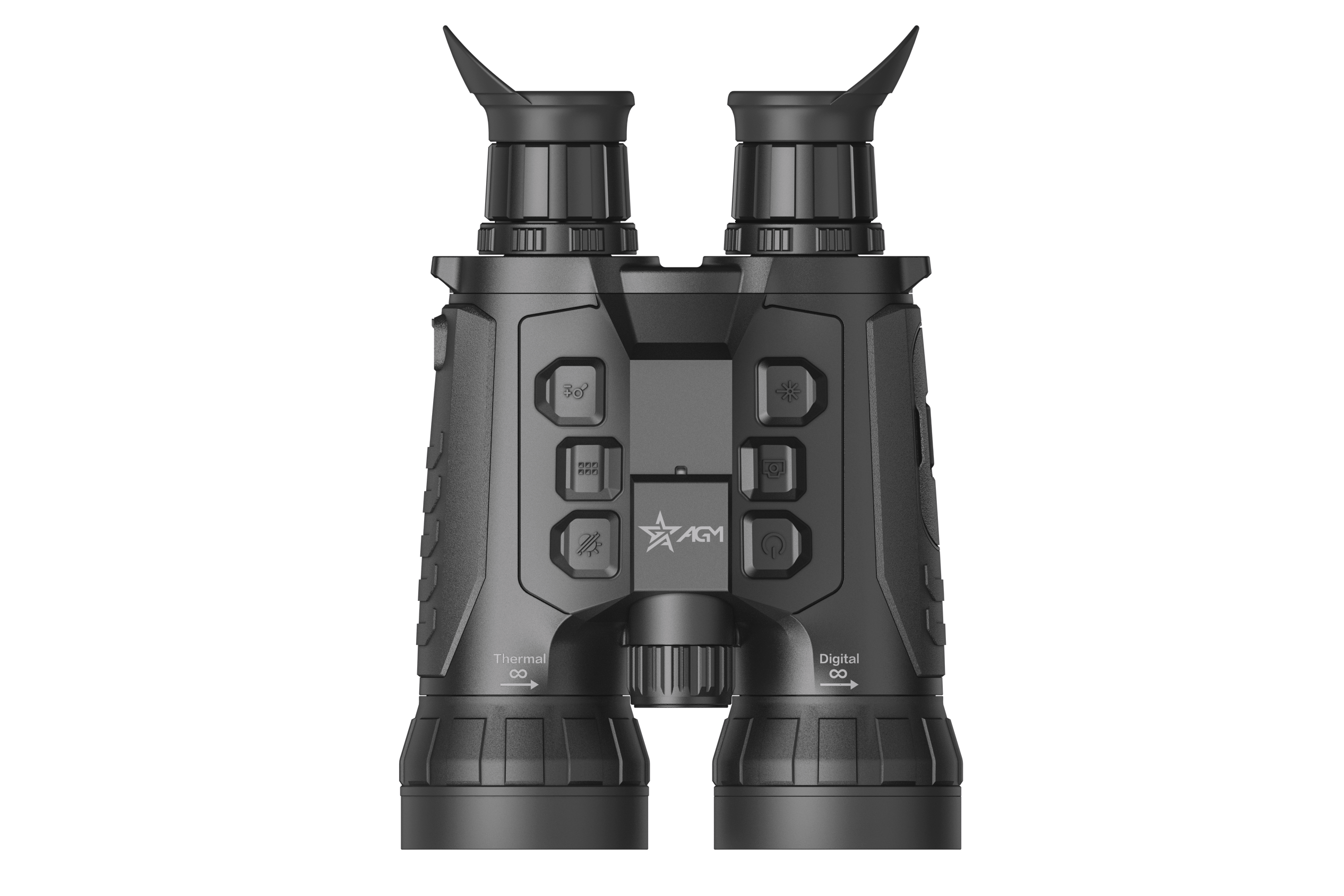

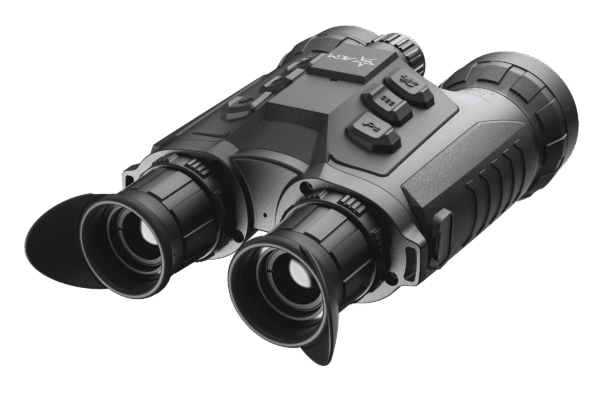

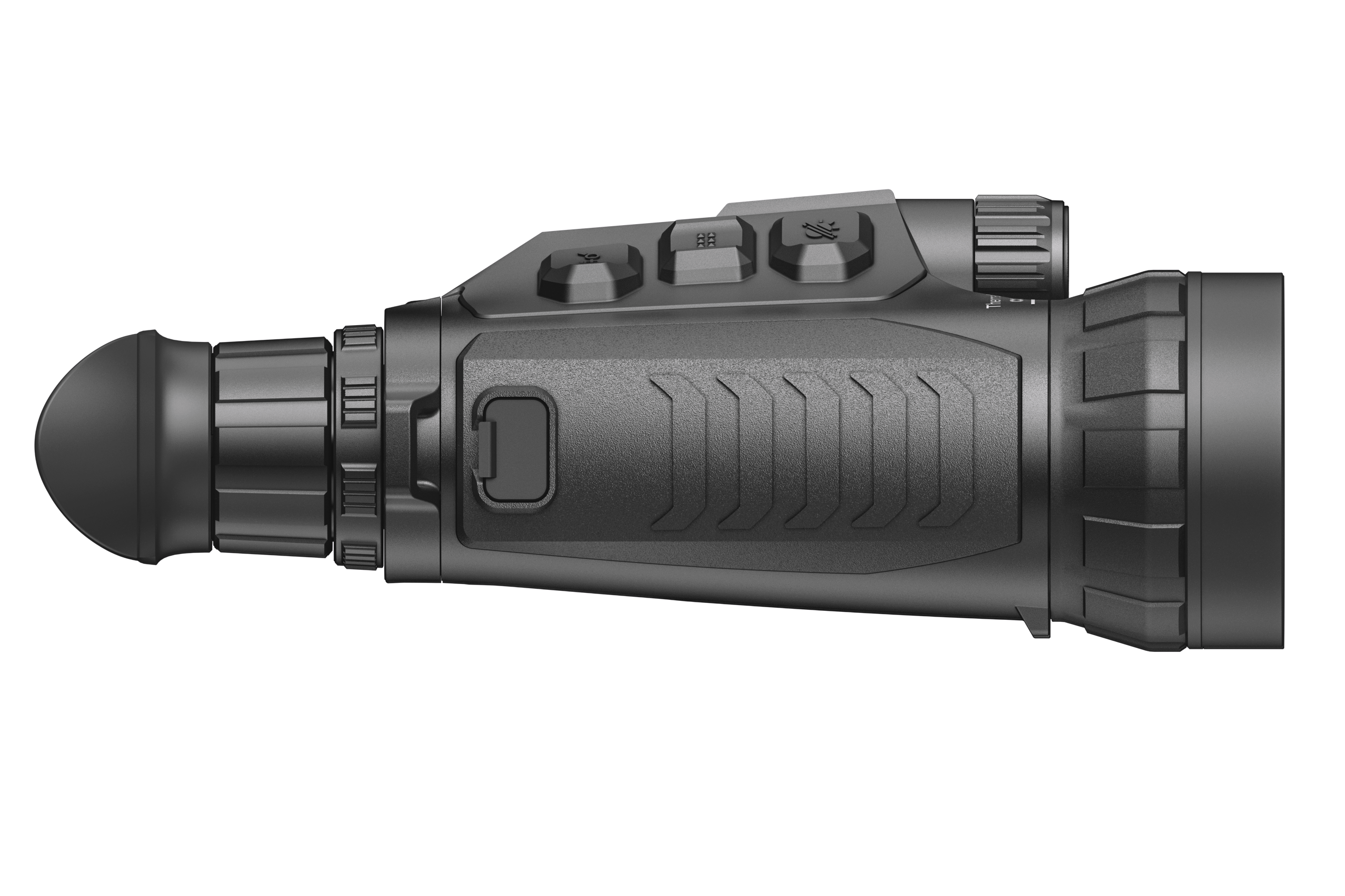

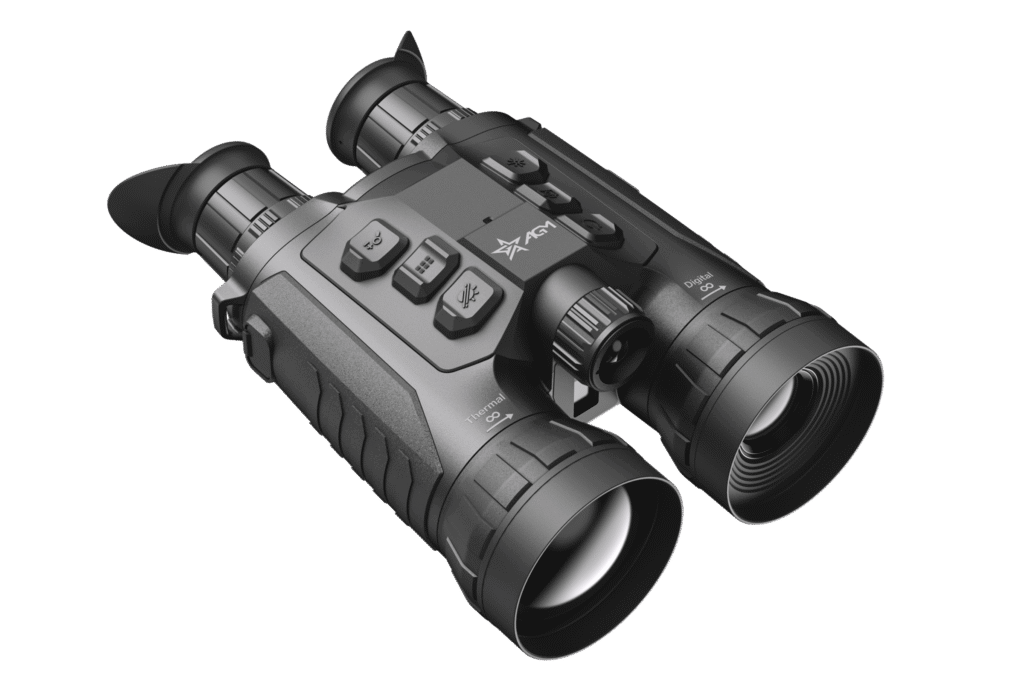

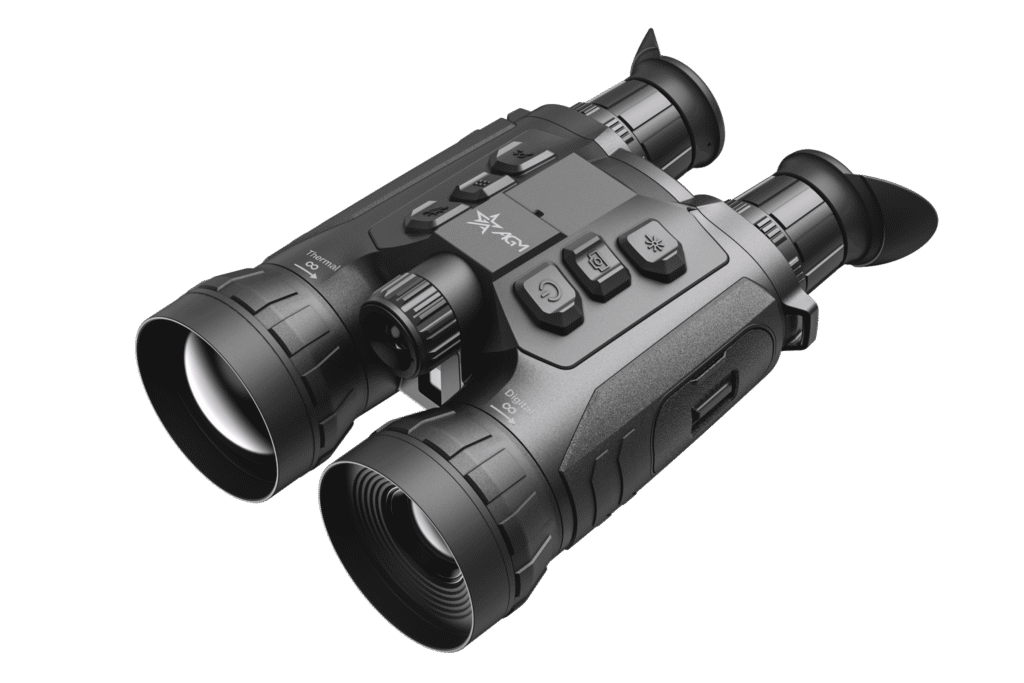

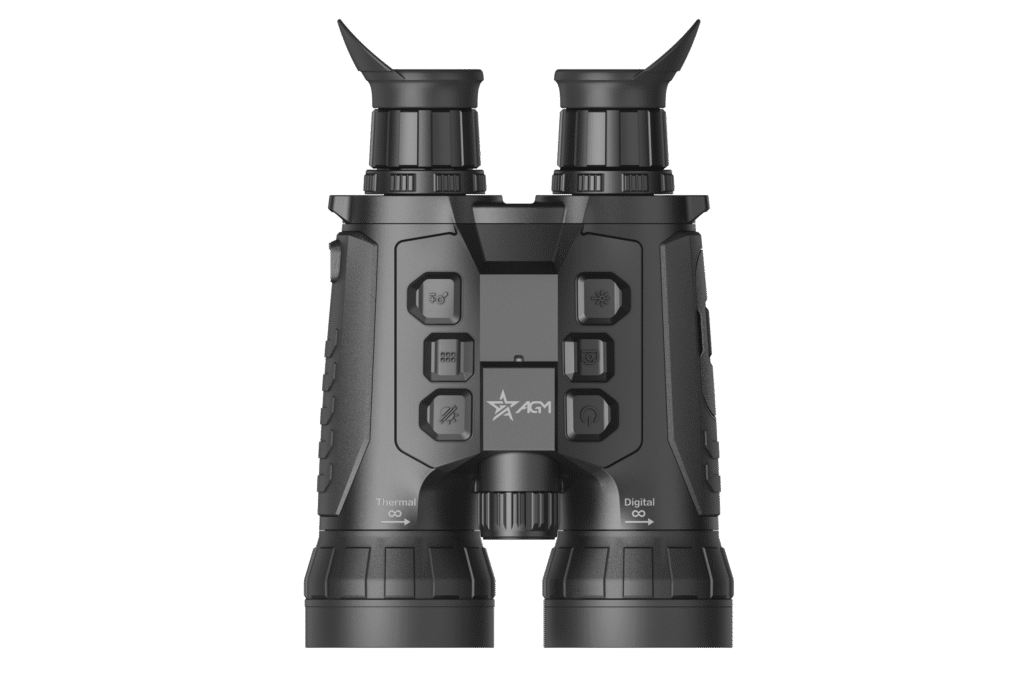

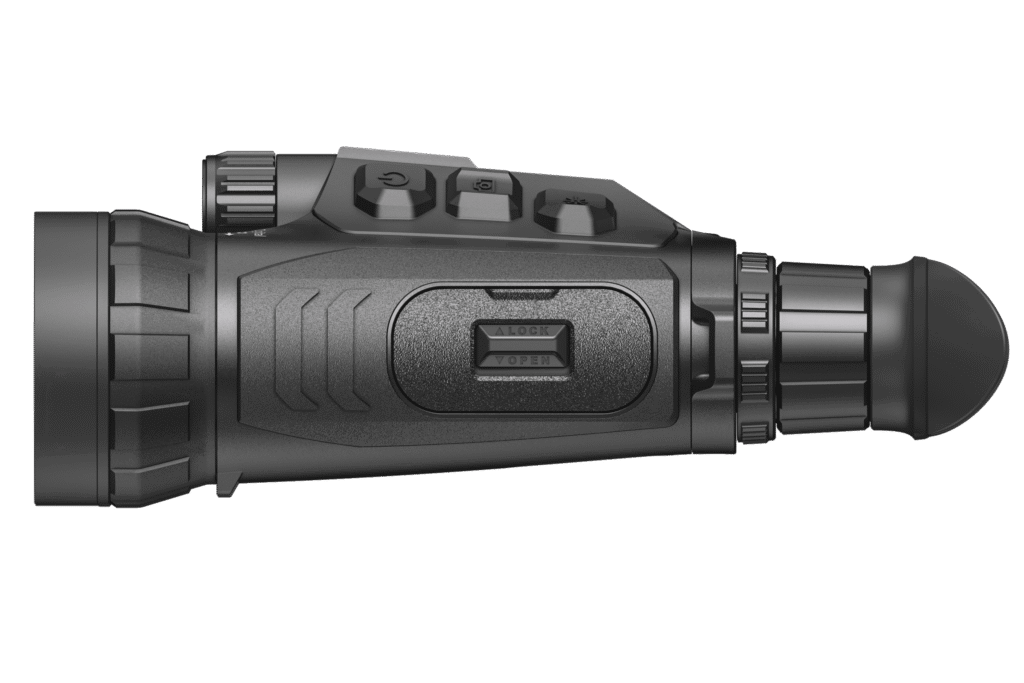

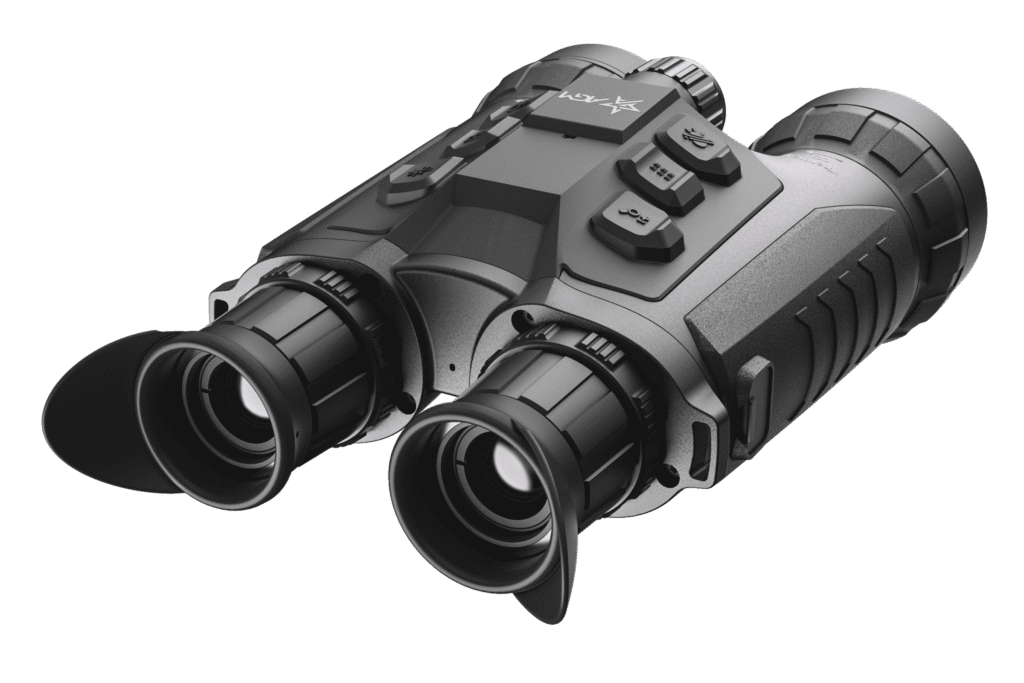

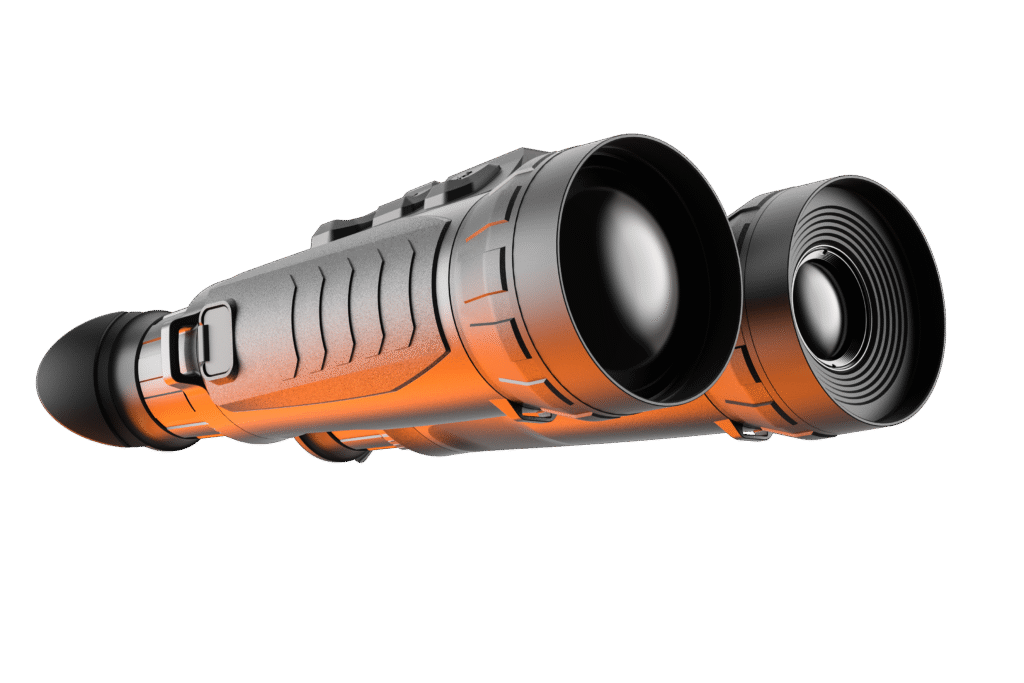

AGM ObservIR LRF 60-1280 Thermal and Digital Binoculars

Description

The AGM ObservIR LRF Thermal & Digital Day/Night Vision binoculars are some of the most technologically advanced and feature-packed digital devices in the world.Product Overview

The primary engine behind these binoculars lies within the main thermal viewing channel, featuring a high-sensitivity 12 micron detector. Unlike other thermal binoculars on the market, the ObservIR LRF also comes outfitted with a digital day/night channel which is great for aiding in recognition of targets detected by the thermal channel.

The built-in 1,000 m laser rangefinder simply takes the ObservIR LRF to another level, and it also includes 64 GB of internal memory (EMMC storage) and Wi-Fi compatibility.

The ObservIR LRF 60-1280 provides an unrivaled image quality in compact housing. It is equipped with a 60 mm Germanium lens and a 1280×1024 resolution thermal sensor with a fast 50 Hz refresh rate.Key Features

Dual-Spectrum System: Features a dual-spectrum thermal and digital day/night system.
High-Resolution Thermal Imaging: 12µm high-sensitivity thermal sensor with 1280×1024 thermal resolution.
Superior Sensitivity: Superior sub-18 milikelvin thermal sensitivity (NETD is less than 18 mK at $25^{\circ}\text{C}$, F#=1.0).
High-Resolution Digital Channel: Ultra-low illumination digital channel with 3840×2160 digital channel resolution.
Integrated Laser Rangefinder (LRF): Eye-safe 1,000 m laser rangefinder with $\pm 1\text{ m}$ accuracy and 905 nm wavelength.
Display: 1920×1080 resolution, 0.49-inch OLED display, 50 FPS.
Digital Capabilities: Digital image processing technology, Video/audio recording and snapshot capture.
Connectivity and Navigation: Built-in Wi-Fi hotspot, GPS module, and Digital Magnetic Compass.
Power Management: Up to 6 hours of continuous operation on a single charge, with external power supply capability via a USB Type-C port.
Durability: IP67 waterproof and dustproof rating.
Warranty: Comes with a 5-year warranty.

Detailed Specifications

Feature	Specification
Thermal Channel Image Sensor	12µm VOx Uncooled Focal Plane Array
Thermal Channel Resolution	$1280\times1024$
Thermal Channel Refresh Rate	50 Hz
NETD (Thermal Sensitivity)	Less than 18 mK ($25^{\circ}\text{C}$, F#=1.0)
Thermal Channel Lens System	60 mm; F/1.0
Thermal Channel Field of View	$14.6^{\circ}\times8.8^{\circ}$
Thermal Channel Magnification	2.5x, 5x, 10x, 20x (2.5x – 20x thermal magnification)
Detection Range (6′ object)	3,100 m
FFC (Flat Field Correction)	Auto, Manual, External Correction
Thermal Channel Palettes	Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Digital Channel Image Sensor	$3840\times2160$, 1/1.8″ Progressive Scan CMOS
Digital Channel Magnification	5.5x, 11x, 16.5x, 22x
Digital Channel Field of View	$7.3^{\circ}\times4.1^{\circ}$
Digital Channel Lens System	60 mm, F/2.2
Digital Channel Viewing Range at Night	400 m
Storage	Built-in EMMC (64 GB)
Battery Type	One Replaceable and Rechargeable NE-7255 Li-ion Battery 7.18 V/5400 mAh
Battery Life (operating)	Up to 6 hours continuous running (@25°C, WiFi, IR and LRF off)
Power	5 VDC/9 VDC, 3 A; USB Type-C interface
Operating Temperature	$-30^{\circ}\text{C to } 55^{\circ}\text{C } (-22^{\circ}\text{F to } 131^{\circ}\text{F})$
Dimensions	$230\times153\times83\text{ mm } (9.1 \times 6.0 \times 3.3\text{ in})$
Weight (w/o batteries)	0.89 kg (1.97 lb)

Additional Functions

Imaging Enhancements: Image Boost 3.0, Zoom Pro.
Power and Energy Saving: Supports direct charging and fast charging. Features Standby mode and Auto screen-off function to saving energy.
Illumination: Built-in 850nm Smart IR with power and beam angle adjustment.
Adjustment: Diopter Adjustment ($-5\text{D\~to}+3\text{D}$), Interpupillary Adjustment Range (60 mm to 74 mm).

What’s in the Box

The package includes:

ObservIR LRF Binoculars
Two battery packs
Wrist strap
Tripod adapter
Charger

Additional information

Weight	40 oz
Dimensions	10 × 4 × 8 in
Brand	AGM
imaging-type	Thermal
