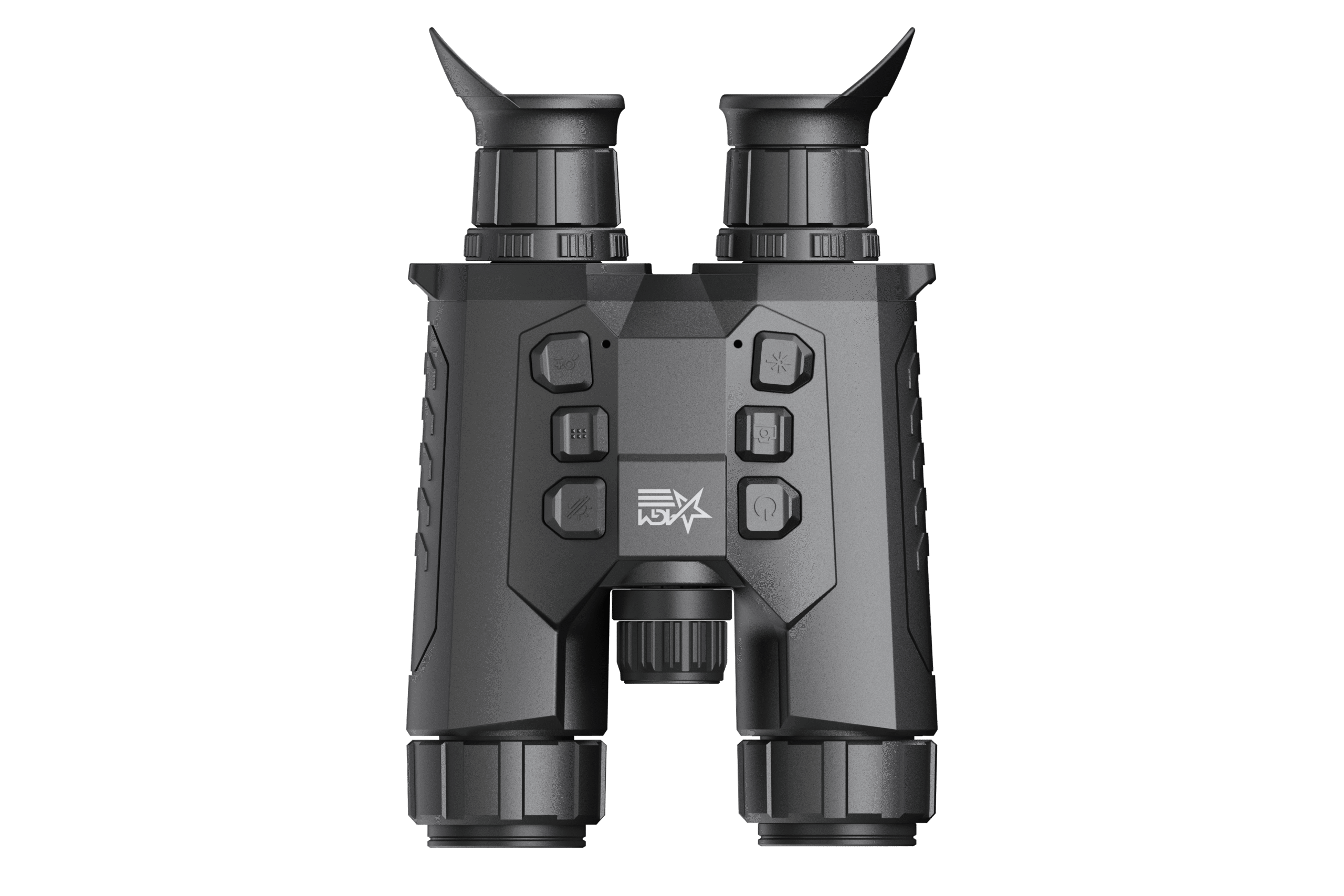

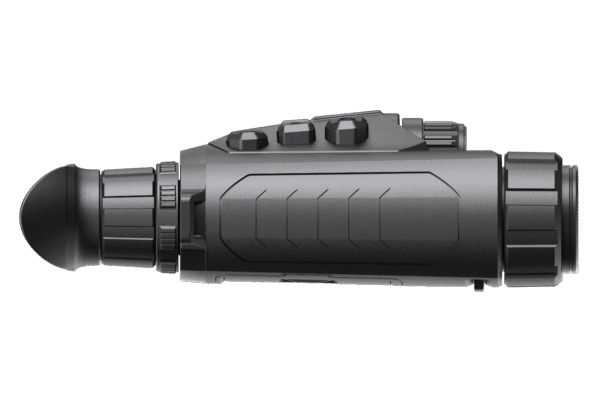

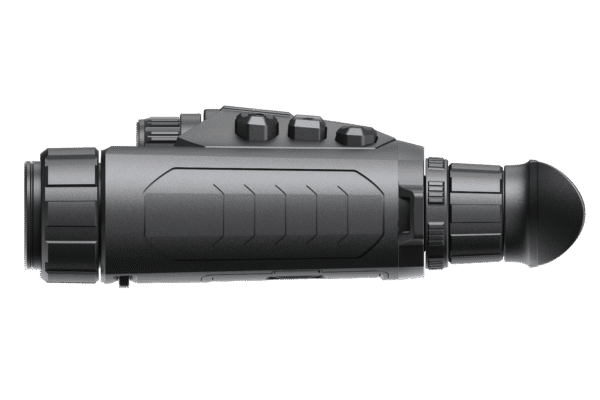

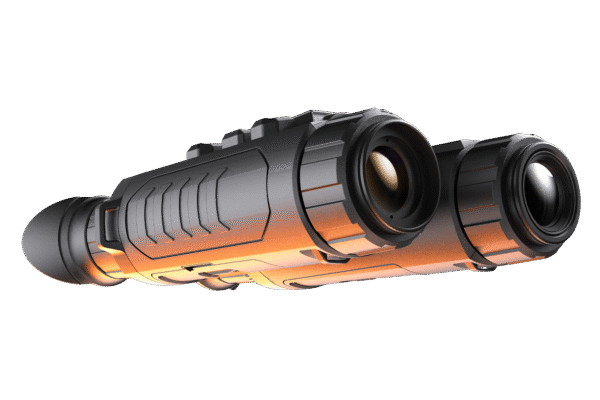

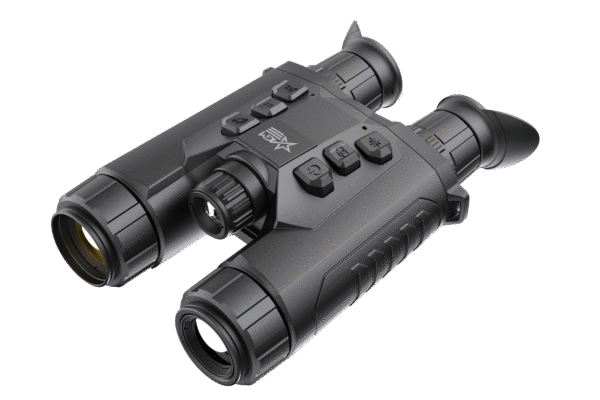

The AGM ObservIR LRF Thermal & Digital Day/Night Vision binoculars are among the most technologically advanced and feature-packed optics available.Product Overview
The primary viewing engine is the main thermal channel, featuring a high-sensitivity 12 micron detector. Unlike other thermal binoculars, the ObservIR LRF also includes a digital day/night channel to aid in target recognition. The integrated 1,000m laser rangefinder elevates the device, which also includes 64GB of internal memory and Wi-Fi compatibility.
These binoculars come packed with numerous features common to the AGM thermal product assortment:
- Dual-spectrum thermal and digital day/night system
- 35 mm objective lens with a 1.0 aperture
- 3840×2160 ultra-low light CMOS sensor
- Various viewing modes and multiple color palettes
- Picture-in-picture (PIP) mode
- Built-in GPS module
- Long-range IR illuminator
- USB Type-C port for external power capabilities and direct charging
- IP67 waterproof rating
Key Features & Specifications
| Feature | Specification |
|---|---|
| Thermal Channel Resolution | 640×512 |
| Thermal Channel Magnification | 3x, 11x, 22x |
| Digital Channel Resolution | 3840×2160 |
| Laser Rangefinder | Eye-safe 1,000 m range with ±1 m accuracy |
| Detection Range (6′ object) | 1,800 m |
| Display | 1920×1080 resolution, 0.49-inch OLED display |
| NETD (Thermal Sensitivity) | Less than 15 mK ($25^{\circ}$C,F\#=1.0) |
| Storage | Built-in 64 GB EMMC |
| Battery Life (Operating) | Up to 8 hours continuous running (@25°C, WiFi, IR and LRF off) |
| Protection Level | IP67 (Waterproof and Dustproof) |
| Warranty | 5-year warranty |
Additional Capabilities
- Imaging: Digital image processing technology, Video/audio recording and snapshot capture.
- Connectivity: Wi-Fi hotspot, Digital Magnetic Compass, GPS.
- Illumination: Built-in 850nm Smart IR illuminator with adjustable power and beam angle.
- Thermal Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome.
- Power: Uses two replaceable and rechargeable Li-ion 18650 batteries. Supports external power supply and direct charging via USB Type-C.
- Energy Saving: Standby mode and Auto screen-off function.
What’s in the Box
The package includes:
- ObservIR LRF Binoculars
- Four 18650 batteries
- Wrist strap
- Charger
