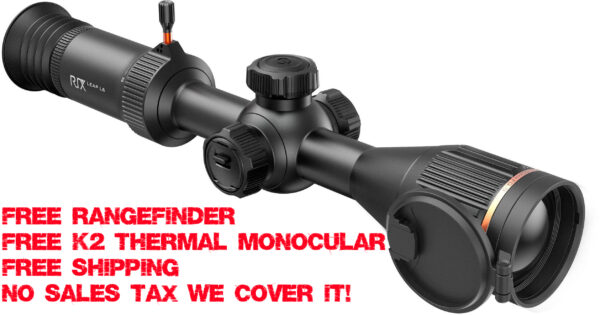

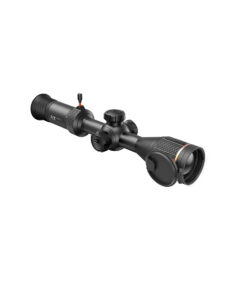

RIX Leap L6 Thermal Imaging Riflescope

Description

The LEAP 6 (L6) is the world’s first continuous optical zoom 640 thermal scope, specially designed for outdoor hunting during the day and night. Equipped with a high-sensitivity infrared detector and advanced thermal imaging technology, it ensures clear visibility in challenging conditions such as rain, snow, fog, or darkness.
It features a 30mm standard tube diameter for easy mounting and offers a range of functionalities, including photography, video recording, automatic shooting capture, optical and electronic zoom, Picture-in-Picture (PIP), and a variety of reticle options.
Enjoy extended usage with the replaceable 18650 battery. A single battery provides over 9 hours of continuous operation, and with just three batteries, you can experience a full day of uninterrupted usage.
Simplify and streamline your operation with three knobs and two buttons, providing a user-friendly experience where zeroing adjustments no longer require changing directions.

Model		L6
Sensor Specifications	Type	VOx Uncooled
	Resolution, pixels	640×360
	Pixel pitch, μm	12
	NETD, mK	<25
	Frame rate, Hz	50

Optical Specifications	Objective Lens，mm	50
	Optical zoom, x	2.8 to 8.4
	Field of View, degrees / yd @ 100 yd	8.8°/15.4yd
	Digital zoom, x	1 to 4
	Eye relief, mm	50
	Diopter adjustment, D	-5 – +5
	Detection Range, m/yd	2600/2844

Display Specifications	Type	OLED
Display Specifications	Resolution, pixels	1920×1080

Wi-Fi	Wireless protocol	Wi-Fi
Wi-Fi	Frequency, GHz	2.4GHz

Video Recorder	Video/Photo resolution, pixels	960×720
	Video/Photo format	.mp4 / .jpg
	Built-in memory, GB	32

Physical Specifications	Degree of Protection, IP code	IP67
	Operating Temperature Range, °F	-4 to+122
	Weight, lb	2.6
	Dimensions, inch	14.6×3.5×3

Connections and Compatibilities	Battery Type	18650
	Capacity, mAh	3200
	Operating Time on Battery Pack (at t=72°F), h	7
	External Power Supply, V	5V (Type C USB)
	Max Recoil Power on Rifled Weapon (Eo), g/Joules	1000g/6000Joules
	Compatible Mounts	30mm rings
