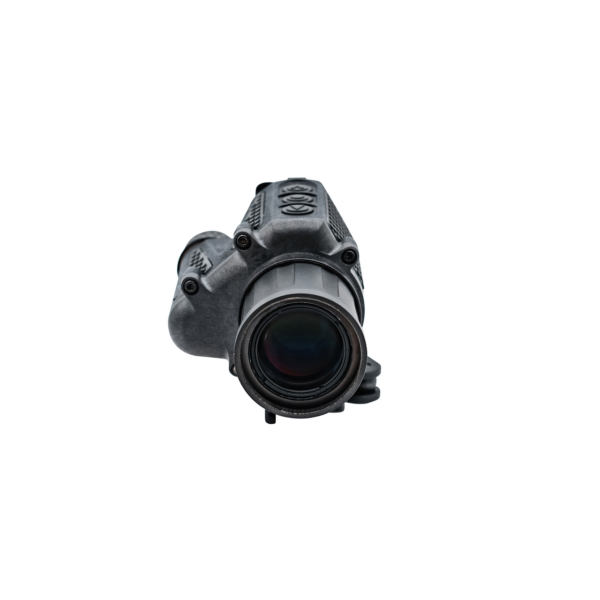

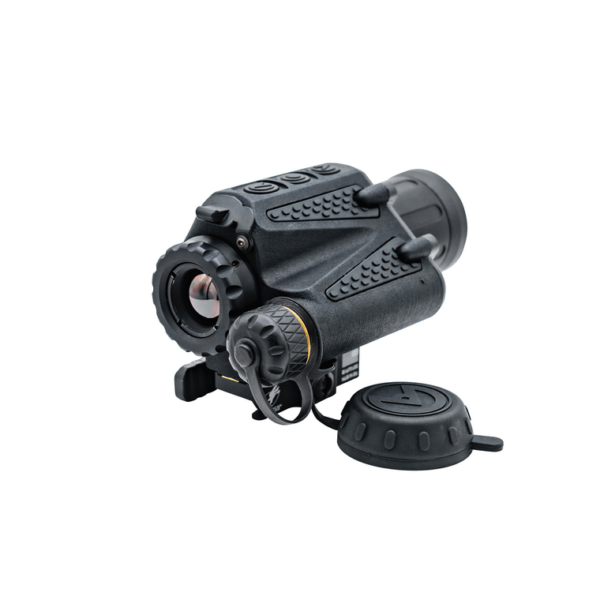

Armasight Jockey 320 Compact Thermal Clip-On

  • Multiple color palettes
  • Intuitive 3-button controls
  • Reticle (for digital zoom)
  • 4 hours runtime at 20° C
  • Image Detail Enhancement
  • Simple alignment for digital zoom capabilities
  • Quick Detach Mount Included
  • Video Recording & Image Capture

$3,099.00

Out of stock

Email when stock available

Description

The Jockey 320 easily mounts in front of your existing 1-6x day scope with no additional zeroing required, working flawlessly with most optics under 5x magnification. The Jockey’s compact and lightweight design keeps your favorite .223/.556, rimfire, airgun, or crossbow nimble and responsive. This unit boasts a fast 60Hz frame rate for smooth operation and industry-best, outstanding visual acuity, based on Armasight’s Iron Wolf thermal technology platform. An extensive suite of features includes video and image capture, USB video stream, USB-C interface for viewing your recordings and photos on external devices such as computers or televisions. The Jockey 320 offers multiple color palettes, intuitive simple 3 button controls, a quick detach mount, and long battery life.

Features

  • Multiple color palettes
  • Intuitive 3-button controls
  • Reticle (for digital zoom)
  • 4 hours runtime at 20° C
  • Image Detail Enhancement
  • Simple alignment for digital zoom capabilities
  • Quick Detach Mount Included
  • Video Recording & Image Capture
  • USB Video Stream
  • USB-C Interface for External Devices
  • Reticle ON/OFF Selection
  • Battery Status Indicator
  • ULTEM Composite Body and Ergonomic Design
  • Designed and Assembled in the USA from U.S. and global components

Additional information

Weight 90 oz
Dimensions 10 × 10 × 10 in
Brand

imaging-type

Mount Type

Specs

Detector Type ArmaCORE(TM) 320×240 12um Thermal Core
Detection Range 708m on a Human Sized Target
Recognition Range 177m on a Human Sized Target
Identification Range 107m on a Human Sized Target
Exit Pupil 25mm
FOV 11.58° (H) x 8.69° (V)
Memory 4 Hours of Video
Dimensions (mm/in) 174 x 68 x 66mm / 6.8 × 2.7 × 2.4in
Weight 362g / 0.79lbs
Optical Magnification 1x unity (recommended for daytime optics with 1x-6x magnification)
Lens System F/1.00; 19mm manual focus
Rear Collimator f38mm
Digital Zoom 1x – 4x
Diopter Adjustment N/A
Battery Life Up to 4h at 20° C (68° F)
Battery Type 2 x CR123A (3V) or 1 x 16650 (3V)
Wireless None
Display XGA (1024 x 768) OLED
Graphics Active On-Screen Graphics and Iconology
Refresh Rate 60 Hz
Operating Temperature -40° C to +50° C (-40° F to + 122° F)
Recoil Rating 5.56cal
Waterproof IP67
Image Processing Digital Enhancement
Warranty 3 years w/ registration

What's Included?

  • Jockey 320 Compact Thermal Clip-On
  • Quick Detach Mount
  • USB-C Cable
  • Thermal Zeroing Target
  • 2 x CR123A Battery
  • USB Cable
  • Lens Cloth
  • Soft Case
  • Product Manual
