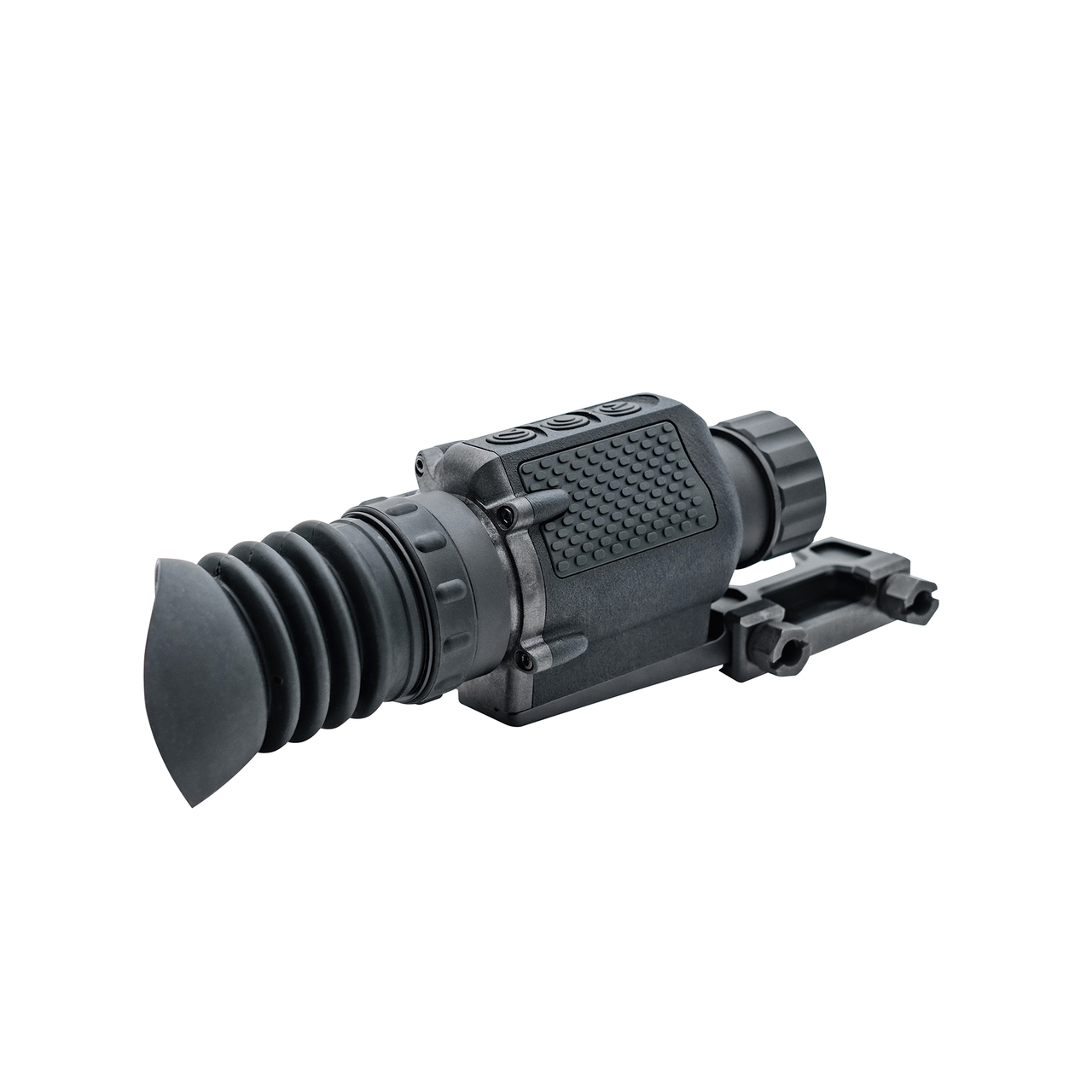

Armasight Collector 640 1-4×25 Compact Thermal Weapon Sight

  • Multiple color palettes
  • Intuitive 3-button controls
  • 8+ Reticle Types
  • 4 hour runtime at 20° C
  • Image Detail Enhancement
  • 1/2MOA Boresight
  • Standard Picatinny Mount Included
  • Video Recording & Image Capture

$4,099.00

Out of stock

Description

The Collector 640’s compact and lightweight design keeps your favorite .223/.556, rimfire, airgun, or crossbow nimble and responsive, and the Collector’s capabilities are optimized for use at the ranges these platforms are normally used. This unit boasts the ArmaCORE™ 640 thermal core, fast 60Hz frame rate for smooth operation and industry-best, outstanding visual acuity, based on Armasight’s Iron Wolf thermal technology platform. An extensive suite of features includes video and image capture, USB video stream, USB-C interface for viewing your recordings and photos on external devices such as computers or televisions. The Collector 640 offers multiple color palettes, intuitive simple 3 button controls, multiple reticle types and colors, and long battery life.

Features

  • Multiple color palettes
  • Intuitive 3-button controls
  • 8+ Reticle Types
  • 4 hour runtime at 20° C
  • Image Detail Enhancement
  • 1/2MOA Boresight
  • Standard Picatinny Mount Included
  • Video Recording & Image Capture
  • USB Video Stream
  • USB-C Interface for External Devices
  • Inclinometer
  • Levelometer
  • Angle Cosine Indicator
  • Reticle ON/OFF Selection
  • Battery Status Indicator
  • ULTEM Composite Body and Ergonomic Design
  • Designed and Assembled in the USA from U.S. and global components

Additional information

Weight 90 oz
Dimensions 10 × 10 × 10 in
Brand

imaging-type

Mount Type

,

Specs

Detector Type ArmaCORE(TM) 640×480 12um Thermal Core
Detection Range 932m on a Human Sized Target
Recognition Range 233m on a Human Sized Target
Identification Range 146m on a Human Sized Target
Eye Relief 45mm
FOV [HxV] 18.18°(H) × 13.73°(V)
Memory 4 Hours of Video
Dimensions (mm/in) 171 x 68 x 66mm / 6.7 × 2.7 × 2.4in
Weight 462g / 1.02lbs with mount
Optical Magnification 1x
Lens System F/1.00; 25mm
Digital Zoom 1 – 4x (1 – 4x total magnification)
Diopter Adjustment -5 to +5 dpt
Battery Life Up to 4h at 20° C (68° F)
Battery Type 2 x CR123A (3V) or 1 x 16650 (3V)
Wireless None
Display XGA (1024 x 768) OLED
Graphics Active On-Screen Graphics and Iconology
Refresh Rate 60 Hz
Operating Temperature -40° C to +50° C (-40° F to + 122° F)
Recoil Rating 5.56 cal
Waterproof IP67
Image Processing Digital Enhancement
Warranty 3 years w/ registration

What's Included?

  • Collector 640 1-4×25 Compact Thermal Weapon Sight
  • Quick Detach Mount
  • USB-C Cable
  • Thermal Zeroing Target
  • 2 x CR123A Battery
  • USB Cable
  • Lens Cloth
  • Soft Case
  • Product Manual
